Comparing Multiple Means with ANOVA

Author

Arvind V.

Published

March 28, 2023

Modified

October 2, 2025

Abstract
ANOVA to investigate how frogspawn hatching time varies with temperature.

1 Setting up R Packages

library(tidyverse) # Tidy data processing
library(ggformula) # Formula based plots
library(mosaic) # Data inspection and Statistical Inference
library(broom) # Tidy outputs from Statistical Analyses
library(infer) # Statistical Inference, Permutation/Bootstrap
library(supernova) # Beginner-Friendly ANOVA Tables
library(ggstatsplot) # Statistical Plots
library(ggcompare) # Improved p.value brackets on graphs
##
library(patchwork) # Arranging Plots
library(ggprism) # Interesting Categorical Axes
library(paletteer) # Color Palettes

Plot Fonts and Theme

Show the Code
library(systemfonts)
library(showtext)
library(ggrepel)
library(marquee)
## Clean the slate
systemfonts::clear_local_fonts()
systemfonts::clear_registry()
##
showtext_opts(dpi = 96) # set DPI for showtext
sysfonts::font_add(
  family = "Alegreya",
  regular = "../../../../../../fonts/Alegreya-Regular.ttf",
  bold = "../../../../../../fonts/Alegreya-Bold.ttf",
  italic = "../../../../../../fonts/Alegreya-Italic.ttf",
  bolditalic = "../../../../../../fonts/Alegreya-BoldItalic.ttf"
)

sysfonts::font_add(
  family = "Roboto Condensed",
  regular = "../../../../../../fonts/RobotoCondensed-Regular.ttf",
  bold = "../../../../../../fonts/RobotoCondensed-Bold.ttf",
  italic = "../../../../../../fonts/RobotoCondensed-Italic.ttf",
  bolditalic = "../../../../../../fonts/RobotoCondensed-BoldItalic.ttf"
)
showtext_auto(enable = TRUE) # enable showtext
##
theme_custom <- function() {
  theme_classic(base_size = 10) +

    theme_sub_axis(
      title = element_text(
        family = "Roboto Condensed",
        size = 8
      ),
      text = element_text(
        family = "Roboto Condensed",
        size = 6
      )
    ) +

    theme_sub_legend(
      text = element_text(
        family = "Roboto Condensed",
        size = 6
      ),
      title = element_text(
        family = "Alegreya",
        size = 8
      )
    ) +

    theme_sub_plot(
      title = element_text(
        family = "Alegreya",
        size = 14, face = "bold"
      ),
      title.position = "plot",
      subtitle = element_text(
        family = "Alegreya",
        size = 10
      ),
      caption = element_text(
        family = "Alegreya",
        size = 6
      ),
      caption.position = "plot"
    )
}

## Use available fonts in ggplot text geoms too!
ggplot2::update_geom_defaults(geom = "text", new = list(
  family = "Roboto Condensed",
  face = "plain",
  size = 3.5,
  color = "#2b2b2b"
))
ggplot2::update_geom_defaults(geom = "label", new = list(
  family = "Roboto Condensed",
  face = "plain",
  size = 3.5,
  color = "#2b2b2b"
))

ggplot2::update_geom_defaults(geom = "marquee", new = list(
  family = "Roboto Condensed",
  face = "plain",
  size = 3.5,
  color = "#2b2b2b"
))
ggplot2::update_geom_defaults(geom = "text_repel", new = list(
  family = "Roboto Condensed",
  face = "plain",
  size = 3.5,
  color = "#2b2b2b"
))
ggplot2::update_geom_defaults(geom = "label_repel", new = list(
  family = "Roboto Condensed",
  face = "plain",
  size = 3.5,
  color = "#2b2b2b"
))

## Set the theme
ggplot2::theme_set(new = theme_custom())

## tinytable options
options("tinytable_tt_digits" = 2)
options("tinytable_format_num_fmt" = "significant_cell")
options(tinytable_html_mathjax = TRUE)


## Set defaults for flextable
flextable::set_flextable_defaults(font.family = "Roboto Condensed")

2 Introduction

Suppose we have three sales strategies on our website, to sell a certain product, say men’s shirts. We have observations of customer website interactions over several months. How do we know which strategy makes people buy the fastest ?

If there is a University course that is offered in parallel in three different classrooms, is there a difference between the average marks obtained by students in each of the classrooms?

In each case we have a set of Quant observations in each Qual category: Interaction Time vs Sales Strategy in the first example, and Student Marks vs Classroom in the second. We can take mean scores in each category and decide to compare them. How do we make the comparisons? One way would be to compare them pair-wise, doing as many t-tests as there are pairs. But with this rapidly becomes intractable and also dangerous: with increasing number of groups, the number of mean-comparisons becomes very large \(N\choose 2\) and with each comparison the possibility of some difference showing up, just by chance, increases! And we end up making the wrong inference and perhaps the wrong decision. The trick is of course to make comparisons all at once and ANOVA is the technique that allows us to do just that.

In this tutorial, we will compare the Hatching Time of frog spawn1, at three different lab temperatures.

In this tutorial, our research question is:

NoteResearch Question

Based on the sample dataset at hand, how does frogspawn hatching time vary with different temperature settings?

3 Workflow: Read the Data

Download the data by clicking the button below.

ImportantData Folder

Save the CSV in a subfolder titled “data” inside your R work folder.

frogs_orig <- read_csv("data/frogs.csv")
frogs_orig

Our response variable is the hatching Time. Our explanatory variable is a factor, Temperature, with 3 levels: 13°C, 18°C and 25°C. Different samples of spawn were subject to each of these temperatures respectively.

4 Workflow: Clean the Data

The data is in wide-format, with a separate column for each Temperature, and a common column for Sample ID. This is good for humans, but poor for a computer: there are NA entries since not all samples of spawn can be subject to all temperatures. (E.g. Sample ID #1 was maintained at 13°C, and there are obvious NAs in the other two columns, which we don’t need).

We will first stack up the Temperature columns into a single column, separate that into pieces and then retain just the number part (13, 18, 25), getting rid of the word Temperature from the column titles. Then the remaining numerical column with temperatures (13, 18, 25) will be converted into a factor.

We will use pivot_longer()and separate_wider_regex() to achieve this. [See this animation for pivot_longer(): https://haswal.github.io/pivot/ ]

Show the Code
frogs_orig %>%
  pivot_longer(
    .,
    cols = starts_with("Temperature"),
    cols_vary = "fastest",
    # new in pivot_longer
    names_to = "Temp",
    values_to = "Time"
  ) %>%
  drop_na() %>%
  ##
  separate_wider_regex(
    cols = Temp,
    # knock off the unnecessary "Temperature" word
    # Just keep the digits thereafter
    patterns = c("Temperature", TempFac = "\\d+"),
    cols_remove = TRUE
  ) %>%
  # Convert Temp into TempFac, a 3-level factor
  mutate(TempFac = factor(
    x = TempFac,
    levels = c(13, 18, 25),
    labels = c("13", "18", "25")
  )) %>%
  rename("Id" = `Frogspawn sample id`) -> frogs_long
frogs_long
##
frogs_long %>% count(TempFac)
(a) Clean Data
(b) Counts of samples per Temperature level
Table 1: Frogspawn data

So we have cleaned up our data and have 20 samples for Hatching Time per TempFac setting.

5 Workflow: EDA

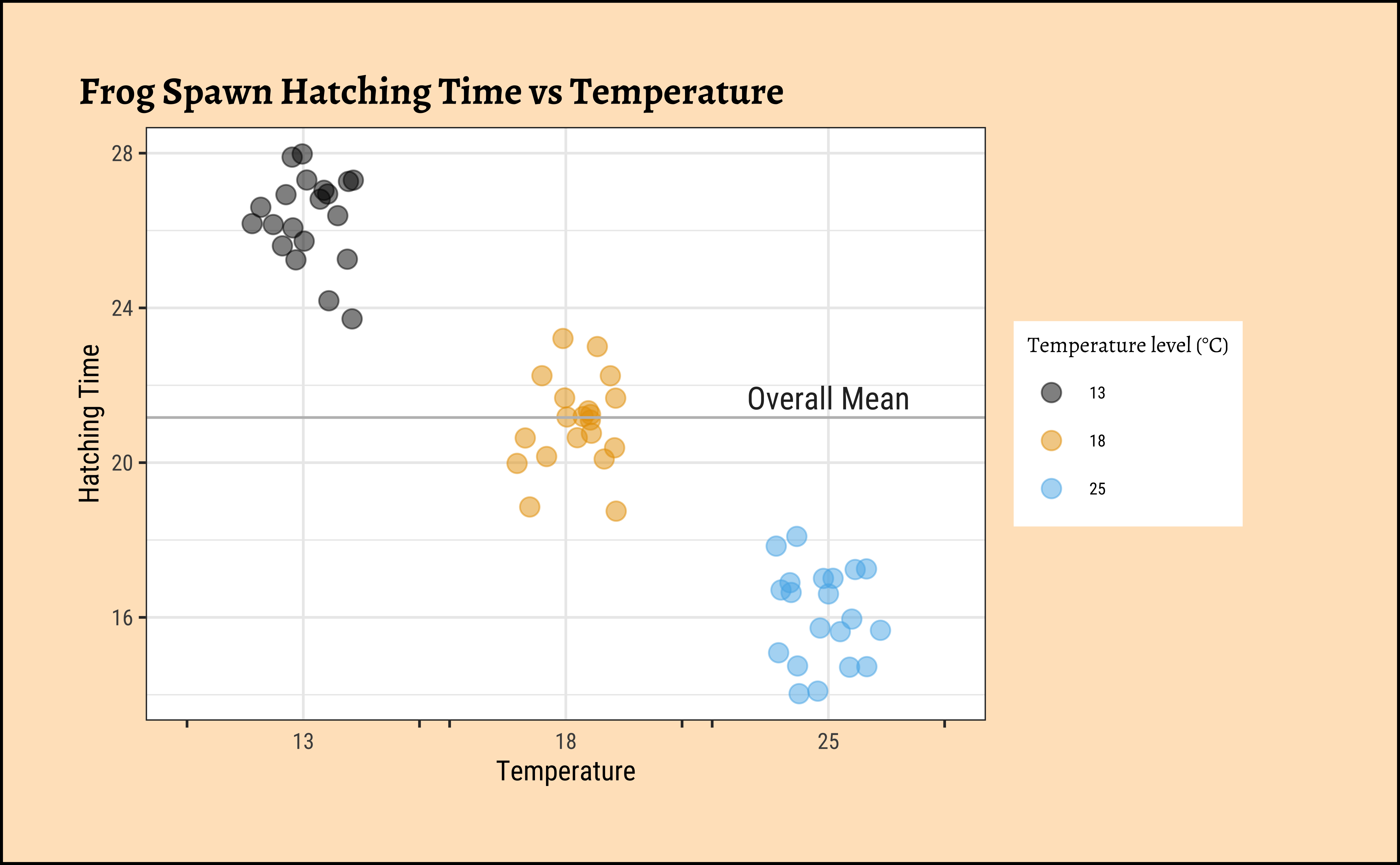

Let us plot jitter-plots, boxplots, and histograms of Hatching Time:

ggplot2::theme_set(new = theme_custom())

gf_jitter(Time ~ TempFac,
  color = ~TempFac, width = 0.2,
  data = frogs_long, size = 3, alpha = 0.5
) %>%
  gf_labs(
    title = "Frog Spawn Hatching Time vs Temperature",
    x = "Temperature", y = "Hatching Time"
  ) %>%
  gf_hline(yintercept = ~ mean(Time), color = "grey") %>%
  gf_annotate(geom = "text", label = "Overall Mean", x = 3, y = mean(frogs_long$Time) + 0.5, size = 4) %>%
  gf_refine(
    scale_color_paletteer_d("ggthemes::colorblind"),
    scale_x_discrete(guide = "prism_bracket"),
    guides(color = guide_legend(title = "Temperature level (°C)"))
  )

ggplot2::theme_set(new = theme_custom())

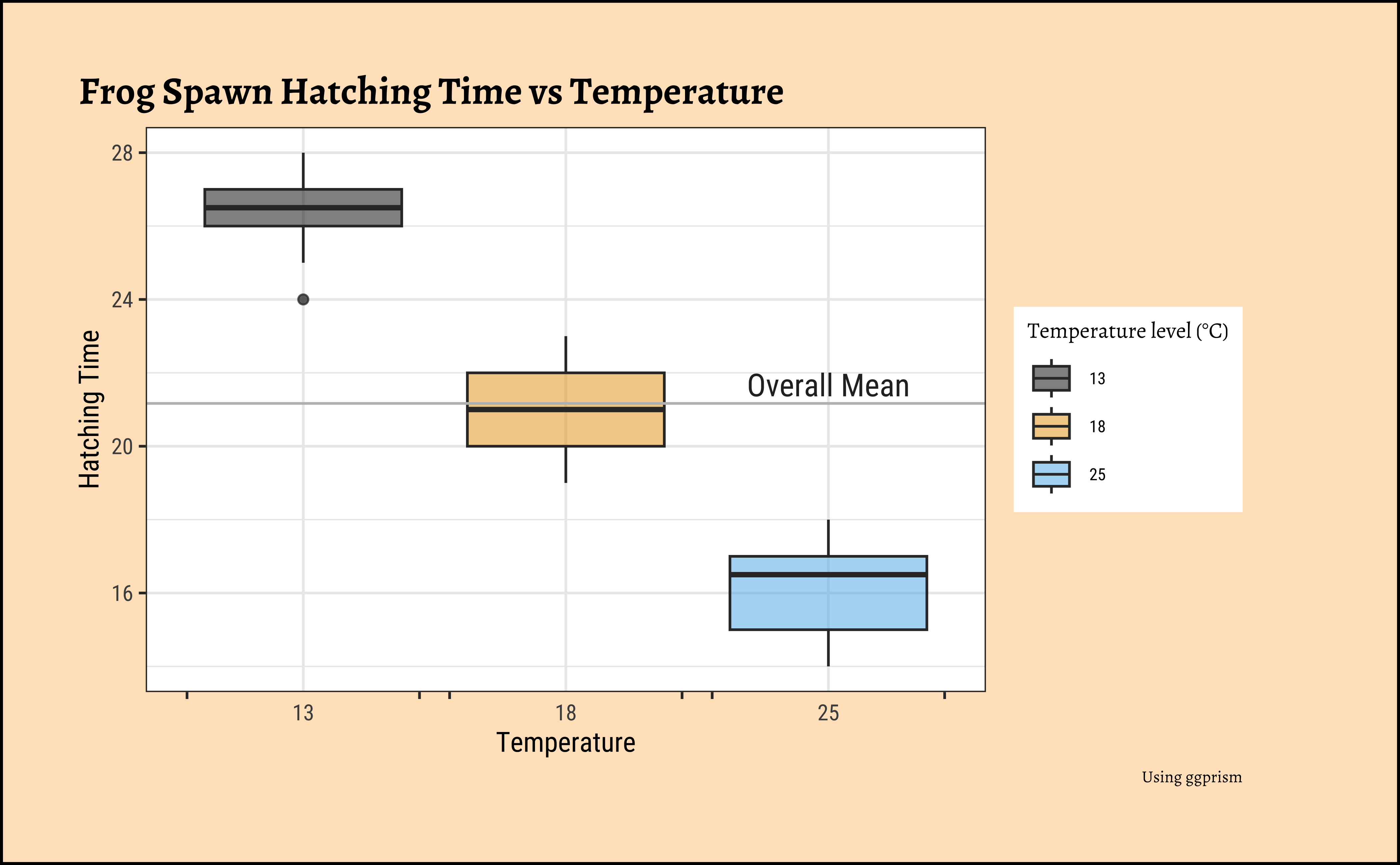

gf_boxplot(
  data = frogs_long,
  Time ~ TempFac,
  fill = ~TempFac,
  alpha = 0.5, orientation = "x"
) %>%
  gf_hline(yintercept = ~ mean(Time), color = "grey") %>%
  gf_labs(
    title = "Frog Spawn Hatching Time vs Temperature",
    x = "Temperature", y = "Hatching Time",
    caption = "Using ggprism"
  ) %>%
  gf_annotate(geom = "text", label = "Overall Mean", x = 3, y = mean(frogs_long$Time) + 0.5, size = 4) %>%
  gf_refine(
    scale_fill_paletteer_d("ggthemes::colorblind"),
    scale_x_discrete(guide = "prism_bracket"),
    guides(fill = guide_legend(title = "Temperature level (°C)"))
  )

ggplot2::theme_set(new = theme_custom())

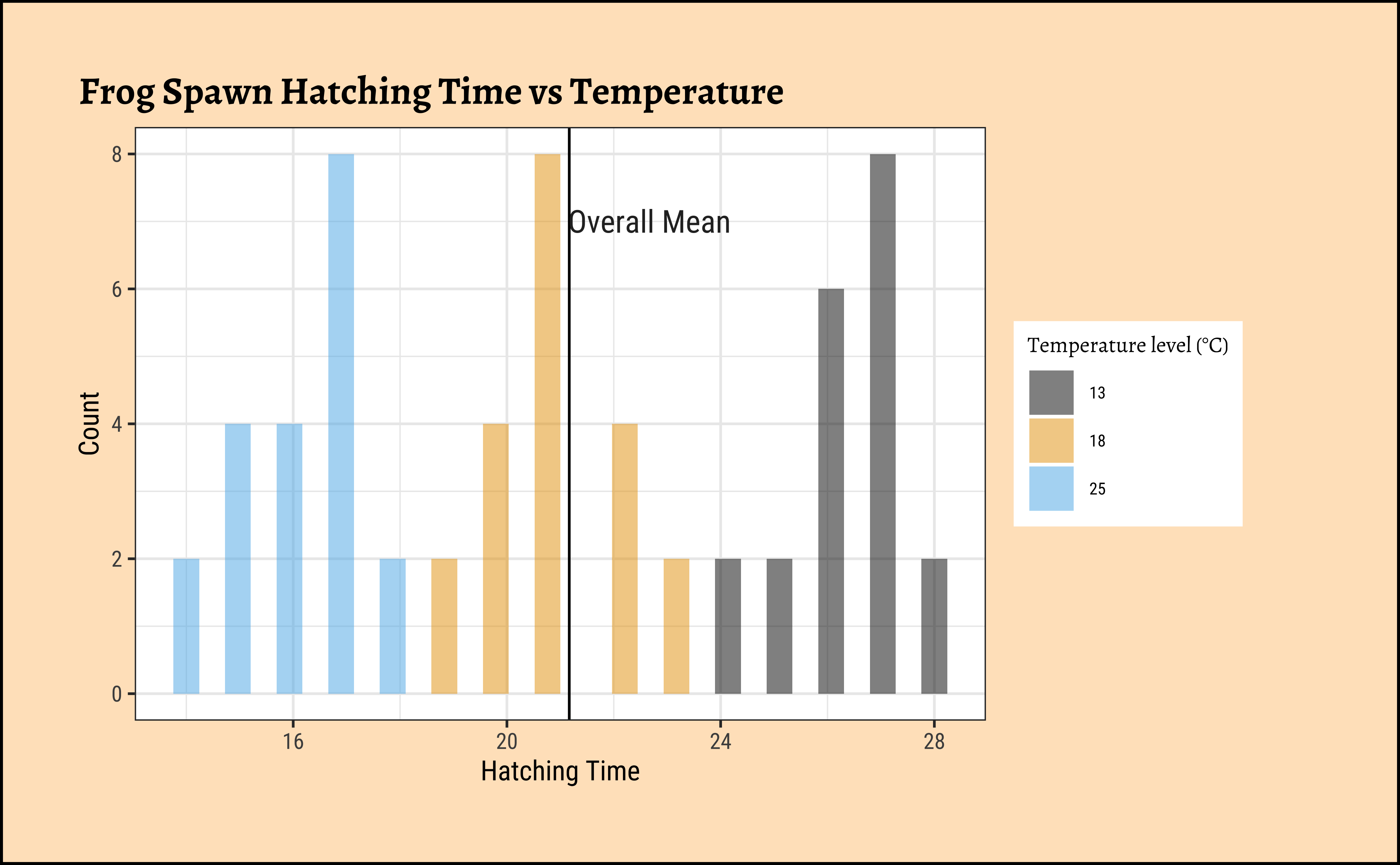

gf_histogram(~Time,
  fill = ~TempFac,
  data = frogs_long, alpha = 0.5
) %>%
  gf_vline(xintercept = ~ mean(frogs_long$Time)) %>%
  gf_labs(
    title = "Frog Spawn Hatching Time vs Temperature",
    x = "Hatching Time", y = "Count"
  ) %>%
  gf_annotate("text",
    y = 7, x = mean(frogs_long$Time) + 1.5,
    label = "Overall Mean", size = 4
  ) %>%
  gf_refine(
    scale_fill_paletteer_d("ggthemes::colorblind"),
    guides(fill = guide_legend(title = "Temperature level (°C)"))
  )

The histograms look well separated and the box plots also show very little overlap. So we can reasonably hypothesize that Temperature has a significant effect on Hatching Time.

The scatter plot seems to show that there are only a few fixed values of observed readings of Hatching Time for each setting of TempFac, which is a little unusual. But we will proceed nonetheless.

Let’s go ahead with our ANOVA test.

6 Workflow: ANOVA

We will first execute the ANOVA test with code and evaluate the results. Then we will do an intuitive walkthrough of the process and finally, hand-calculate entire analysis for clear understanding. For now, a little faith!

R offers a very simple command aov to execute an ANOVA test: Note the familiar formula of stating the variables:

frogs_anova <- aov(Time ~ TempFac, data = frogs_long)
frogs_anova
Call:
   aov(formula = Time ~ TempFac, data = frogs_long)

Terms:
                 TempFac Residuals
Sum of Squares  1020.933    75.400
Deg. of Freedom        2        57

Residual standard error: 1.150133
Estimated effects may be unbalanced

This creates an ANOVA model object, called frogs_anova; the output is still a little too terse for us. We can examine the ANOVA model object best with a package called supernova2:

ggplot2::theme_set(new = theme_custom())
# Create a "pairwise" list object
frogs_supernova <-
  supernova::pairwise(frogs_anova,
    correction = "Bonferroni", # Try "Tukey"
    alpha = 0.05, # 95% CI calculation
    var_equal = TRUE, # We'll see
    plot = T
  )

frogs_supernova$TempFac
supernova::supernova(frogs_anova)
 Analysis of Variance Table (Type III SS)
 Model: Time ~ TempFac

                               SS df      MS       F   PRE     p
 ----- --------------- | -------- -- ------- ------- ----- -----
 Model (error reduced) | 1020.933  2 510.467 385.897 .9312 .0000
 Error (from model)    |   75.400 57   1.323
 ----- --------------- | -------- -- ------- ------- ----- -----
 Total (empty model)   | 1096.333 59  18.582

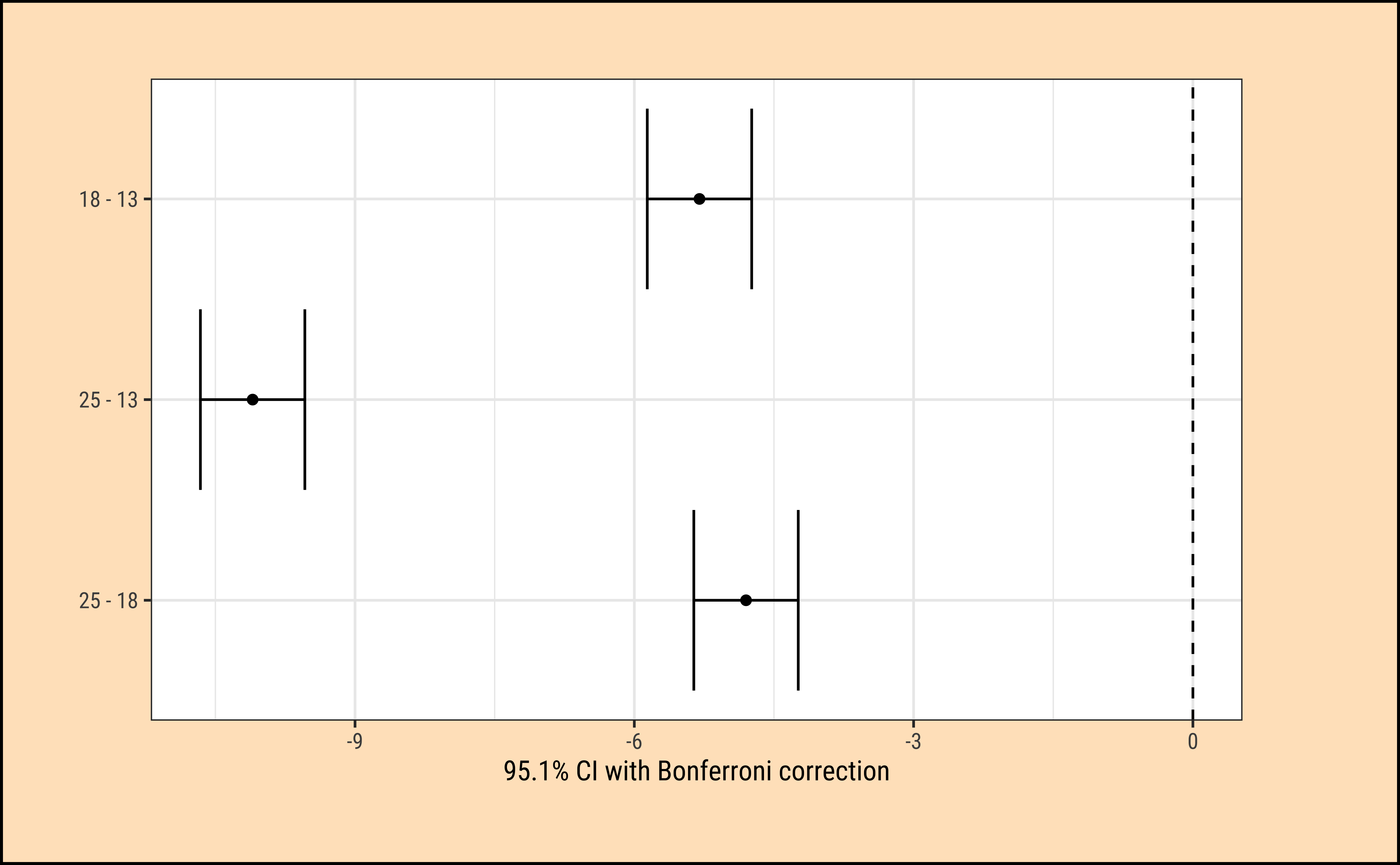

The first table + error-bar plot gives us a comparison between each pair of the three groups of observations defined by TempFac. The differences in spawn hatching Time between each pair of TempFac settings are given by the diff column. Also shown are the confidence intervals for each of these differences (none of which include \(0\)); the p-values for each of these differences is also negligible. Thus we can conclude that the effect of temperature on hatching time is significant.

The supernova table is also very interesting and tells us that the model has reduced the error in our understanding of the data by a significant amount. What exactly that means, we will workout in the next section.

Note

To find which specific value of TempFac has the most effect will require pairwise comparison of the group means, using a standard t-test. The confidence level for such repeated comparisons will need what is called Bonferroni correction3 to prevent us from detecting a significant (pair-wise) difference simply by chance. To do this we take \(\alpha = 0.05\), the confidence level used and divide it by \(K\), the number of pair-wise comparisons we intend to make. This new value is used to decide on the significance of the estimated parameter. So the pairwise comparisons in our current data will have to use \(\alpha/3 = 0.0166\) as the confidence level. The supernova::pairwise() function did this for us very neatly!

There are also other ways, such as the “Tukey correction” for multiple tests.

All that is very well, but what is happening under the hood of the aov() command?

Consider a data set with a single Quant and a single Qual variable. The Qual variable has two levels, the Quant data has 20 observations per Qual level.

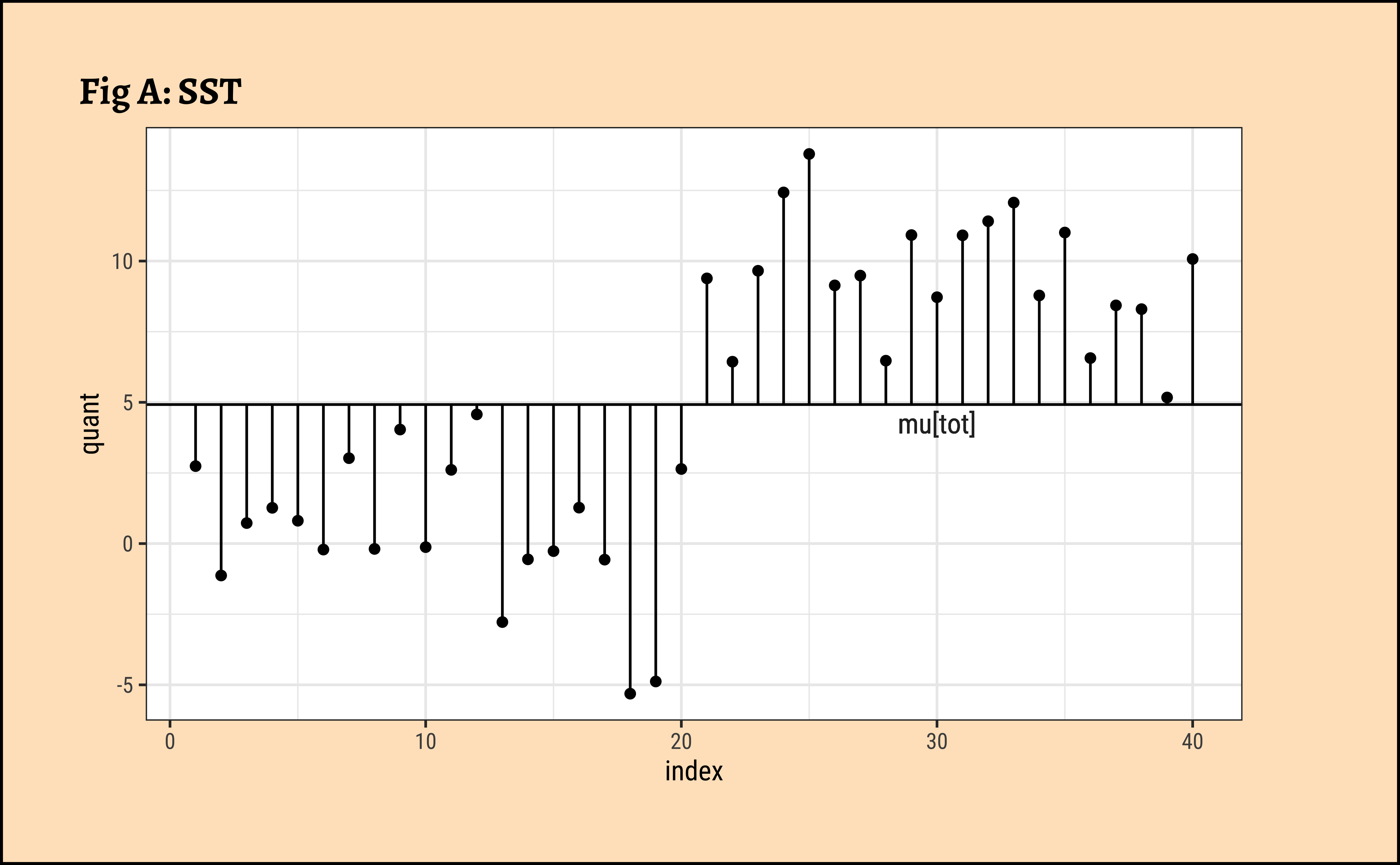

All Data: In Fig A, the horizontal black line is the overall mean of quant, denoted as \(\mu_{tot}\). The vertical black lines to the points show the departures of each point from this overall mean. The sum of squares of these vertical black lines in Fig A is called the Total Sum of Squares (SST).

\[ SST = \Sigma (y - \mu_{tot})^2 \tag{1}\]

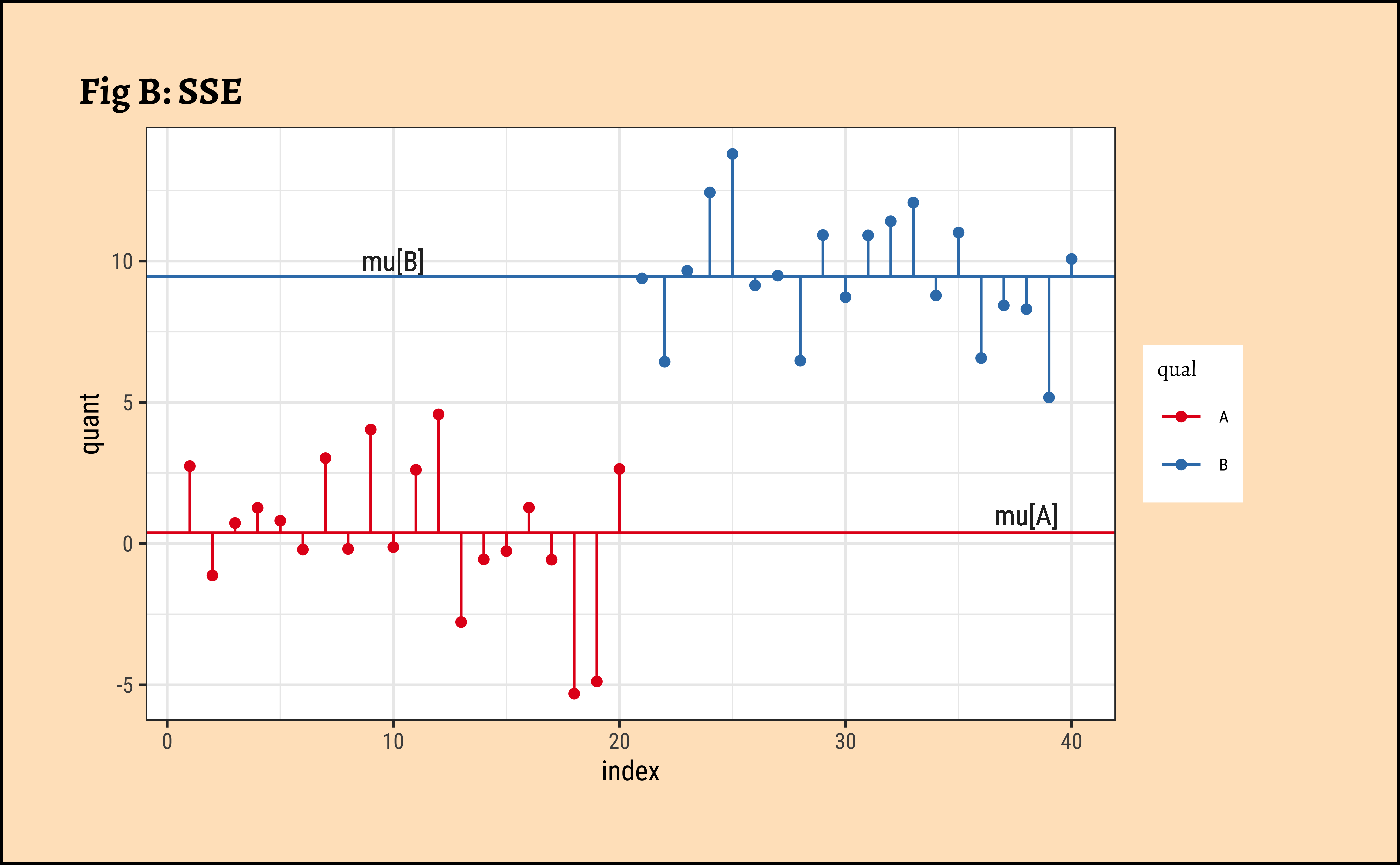

Grouped Data: In Fig B, the horizontal green and red lines are the means of the individual groups, respectively \(\mu_A\) and \(\mu_B\). The green and red vertical lines are the departures, or errors, of each point from its own group-mean. The sum of the squares of the green and red lines is called the Total Error Sum of Squares (SSE).

\[ SSE = \Sigma [(y - \mu_A)^2] + \Sigma (y - \mu_B)^2] \tag{2}\]

Improvement: We take the difference in the squared error sums:

\[ SSA = SST - SSE \tag{3}\]

\(SSA\) is called the Treatment Sum of Squares, the “improvement” in going from believing in one mean to believing in two.

Improvement Ratio: \(SSA/SSE\) might now help us decide whether two means are better than one.

Let us compute these numbers for our toy dataset:

demo_anova <- aov(quant ~ qual, data = toydata)
supernova::supernova(demo_anova)
 Analysis of Variance Table (Type III SS)
 Model: quant ~ qual

                               SS df      MS       F   PRE     p
 ----- --------------- | -------- -- ------- ------- ----- -----
 Model (error reduced) |  823.407  1 823.407 139.356 .7857 .0000
 Error (from model)    |  224.529 38   5.909
 ----- --------------- | -------- -- ------- ------- ----- -----
 Total (empty model)   | 1047.935 39  26.870

What do we see?

  1. All Data: \(SST = 1047.935\).
  2. Grouped Data: \(SSE = 224.529\).
  3. Improvement: \(SSA = SST-SSE\) = \(823.407\).
  4. Improvement Ratio: Before we set up this ratio, we must realize that each of these measures uses a different number of observations! So the comparison is done after scaling each of \(SSA\) and \(SSE\) by the number of observations influencing them. (a sort of per capita, or average, squared error, an idea we saw when we defined Standard Errors): \(F_{stat} = \frac{SSA / df_{SSA}}{SSE / df_{SSE}}\), where \(df_{SSA} = 1\) and \(df_{SSE} = 38\) are respectively the degrees of freedom in \(SSA\) and \(SSE\).
  5. Large Enough Ratio?: The value of the F-statistic from the table above is \(\frac{823.407}{5.909} = 139.356\). Is this ratio big enough? F-statistic is compared with a critical value of the F-critical to help us decide. (Here, it is.)
  6. Belief: So we now believe in the idea of two means.
  7. Back to Mean Differences: Finally, in order to find which of the means is significantly different from others (if there are more than two!), we need to make a pair-wise comparison of the means, applying the Bonferroni correction as stated before. This means we divide the critical p.value we expect by the number of comparisons we make between levels of the Qual variable. supernova did this for us in the error-bar plot above.
ImportantWhy “ANOVA”?

When divide each of \(SSA\) and \(SSE\) by their degrees of freedom, this gives us a ratio of variances, the F-statistic. And so we are in effect deciding if means are significantly different by analyzing (a ratio of) variances! Hence the name, AN-alysis O-f VA-riance, ANOVA.

So this may seem like a great Hero’s Journey, where we start with means and differences, go into sums of squares, differences and comparisons of error ratios, and return to the means where we started, only to know them properly now.

Now that we understand what aov() is doing, let us hand-calculate the numbers for our frogs dataset and check. Let us visualize our calculations first.

Show the Code
ggplot2::theme_set(new = theme_custom())

frogs_plot <- frogs_long %>%
  arrange(TempFac) %>%
  rowid_to_column(var = "index")

frogs_mean <- frogs_long %>%
  summarise(overall_mean = mean(Time))

frogs_grouped_means <- frogs_long %>%
  group_by(TempFac) %>%
  summarise(grouped_means = mean(Time))

gf_point(Time ~ index,
  color = ~TempFac,

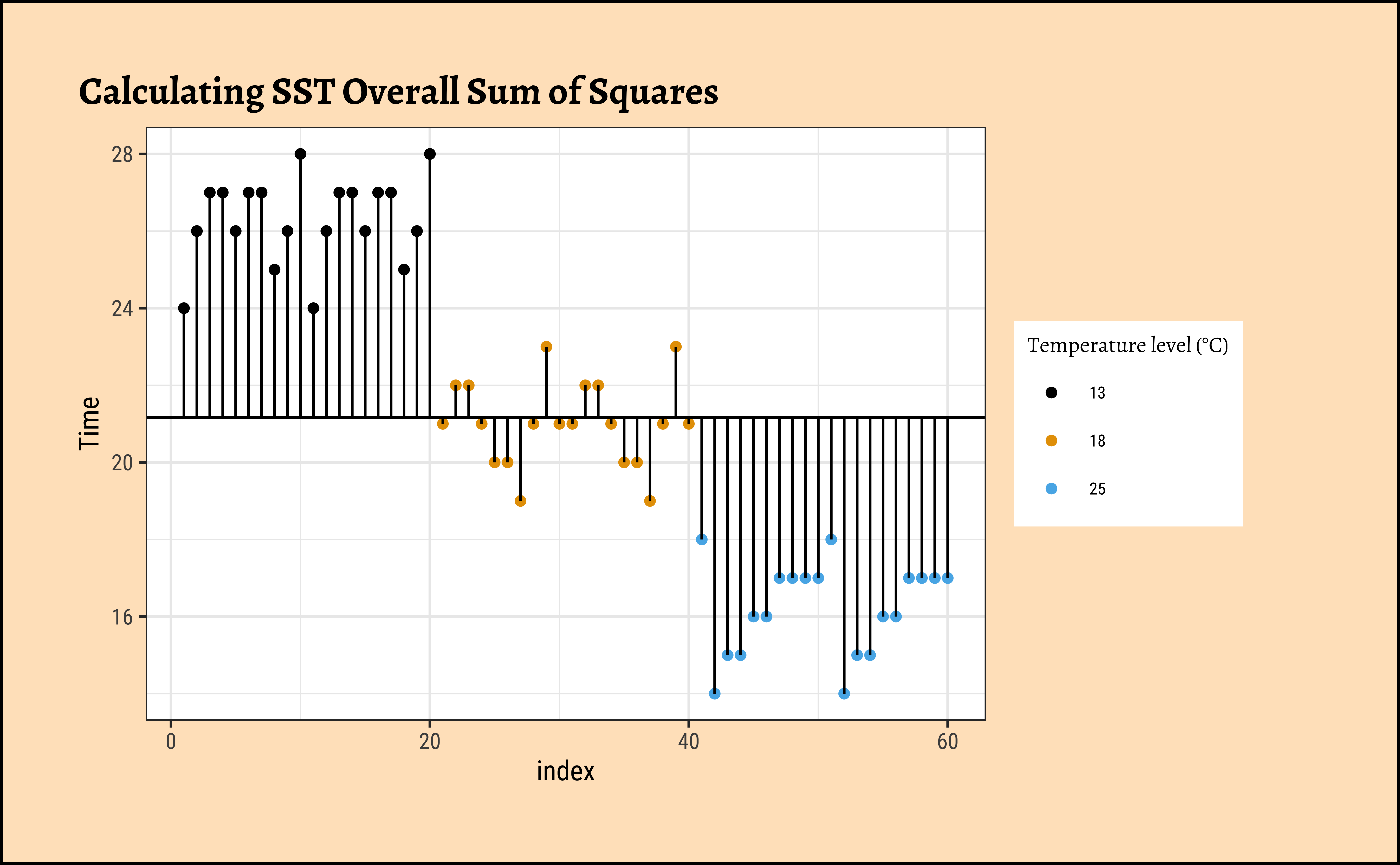

  data = frogs_plot, title = "Calculating SST Overall Sum of Squares"
) %>%
  gf_refine(
    scale_colour_paletteer_d("ggthemes::colorblind"),
    guides(colour = guide_legend(title = "Temperature level (°C)"))
  ) %>%
  gf_hline(
    yintercept = ~overall_mean,
    data = frogs_mean
  ) %>%
  gf_segment(
    data = frogs_plot,
    color = "black",
    frogs_mean$overall_mean + Time ~ index + index
  )
##
frogs_plot <- frogs_long %>%
  arrange(TempFac) %>%
  rowid_to_column(var = "index")
##
frogs_mean <- frogs_long %>%
  summarise(overall_mean = mean(Time))
##
frogs_grouped_means <- frogs_long %>%
  group_by(TempFac) %>%
  summarise(grouped_means = mean(Time))
##

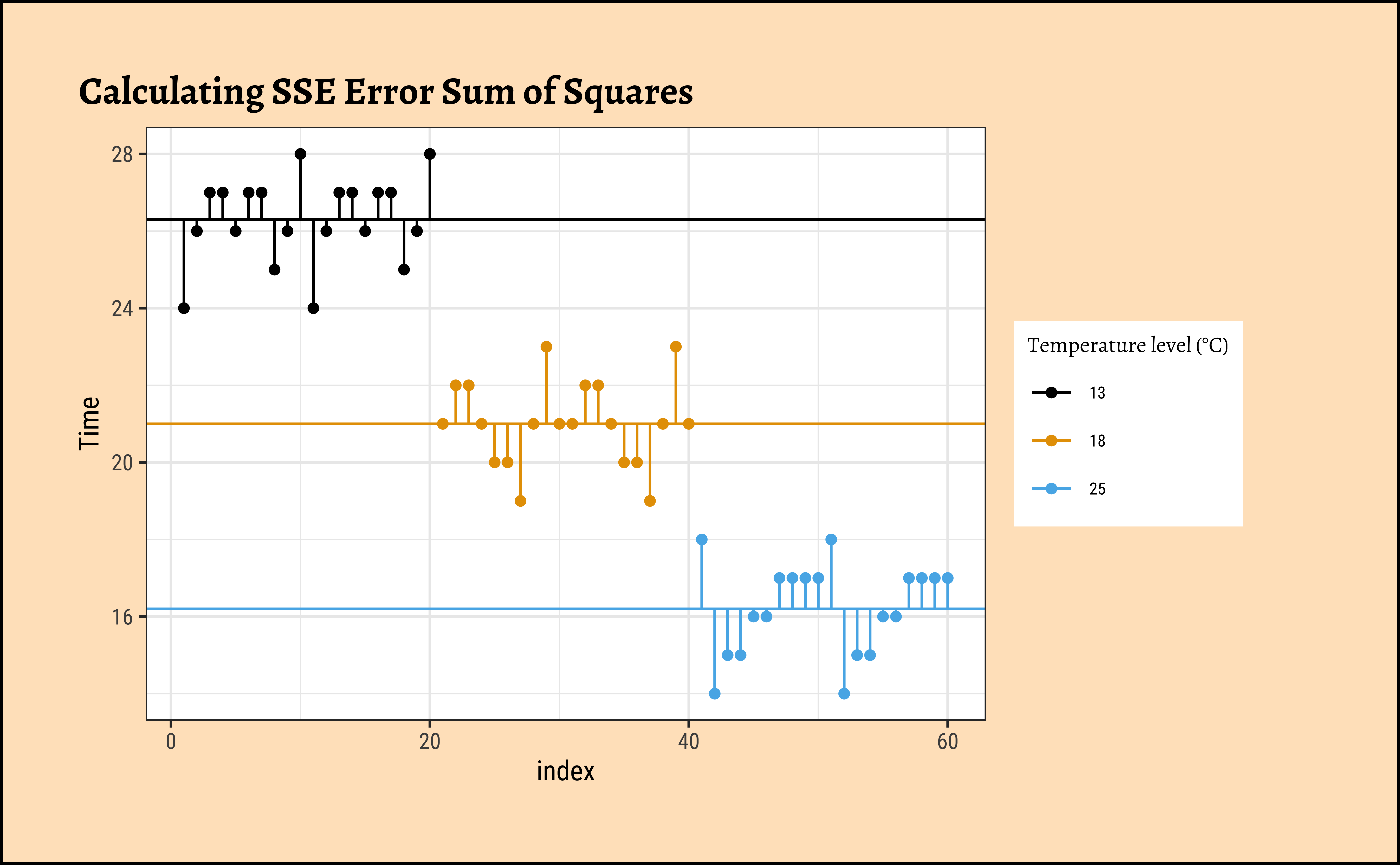

gf_point(Time ~ index,
  group = ~TempFac,
  colour = ~TempFac,
  data = frogs_plot, title = "Calculating SSE Error Sum of Squares"
) %>%
  gf_refine(
    scale_colour_paletteer_d("ggthemes::colorblind"),
    guides(colour = guide_legend(title = "Temperature level (°C)"))
  ) %>%
  gf_hline(
    yintercept = ~grouped_means,
    colour = ~TempFac,
    data = frogs_grouped_means
  ) %>%
  gf_segment(
    data = frogs_plot %>% filter(TempFac == 13),
    frogs_grouped_means$grouped_means[1] + Time ~ index + index
  ) %>%
  gf_segment(
    data = frogs_plot %>% filter(TempFac == 18),
    frogs_grouped_means$grouped_means[2] + Time ~ index + index
  ) %>%
  gf_segment(
    data = frogs_plot %>% filter(TempFac == 25),
    frogs_grouped_means$grouped_means[3] + Time ~ index + index
  )

SST

SST

SSE

SSE

Let us get the ready table from supernova first, and then systematically calculate all numbers with understanding:

supernova::supernova(frogs_anova)
 Analysis of Variance Table (Type III SS)
 Model: Time ~ TempFac

                               SS df      MS       F   PRE     p
 ----- --------------- | -------- -- ------- ------- ----- -----
 Model (error reduced) | 1020.933  2 510.467 385.897 .9312 .0000
 Error (from model)    |   75.400 57   1.323
 ----- --------------- | -------- -- ------- ------- ----- -----
 Total (empty model)   | 1096.333 59  18.582

Here are the SST, SSE, and the SSA:

# Calculate overall sum squares SST
frogs_overall <- frogs_long %>%
  summarise(
    overall_mean_time = mean(Time),
    # Overall mean across all readings
    # The Black Line

    SST = sum((Time - overall_mean_time)^2),
    n = n()
  ) # Always do this with `summarise`

frogs_overall
##
SST <- frogs_overall$SST
SST
[1] 1096.333
# Calculate sums of square errors *within* each group
# with respect to individual group means
frogs_within_groups <- frogs_long %>%
  group_by(TempFac) %>%
  summarise(
    grouped_mean_time = mean(Time), # The Coloured Lines
    grouped_variance_time = var(Time),
    group_error_squares = sum((Time - grouped_mean_time)^2),
    n = n()
  )
frogs_within_groups
##
frogs_SSE <- frogs_within_groups %>%
  summarise(SSE = sum(group_error_squares))
##
SSE <- frogs_SSE$SSE
SSE
[1] 75.4
SST
SSE
SSA <- SST - SSE
SSA
[1] 1096.333
[1] 75.4
[1] 1020.933

We have \(SST = 1096\), \(SSE = 75.4\) and therefore \(SSA = 1020.9\).

In order to calculate the F-Statistic, we need to compute the variances, using these sum of squares. We obtain variances by dividing by their Degrees of Freedom:

\[ F_{stat} = \frac{SSA / df_{SSA}}{SSE / df_{SSE}} \]

where \(df_{SSA}\) and \(df_{SSE}\) are respectively the degrees of freedom in SSA and SSE.

Let us calculate these Degrees of Freedom.

With \(k = 3\) levels in the factor TempFac, and \(n = 20\) points per level, \(SST\) clearly has degree of freedom \(kn-1 = 3*20~ -1 = 59\), since it uses all observations but loses one degree to calculate the global mean. (If each level did not have the same number of points \(n\), we simply take all observations less one as the degrees of freedom for \(SST\)).

\(SSE\) has \(k*(n-1) = 3 * (20 -1) = 57\) as degrees of freedom, since each of the \(k\) groups there are \(n\) observations and each group loses one degree to calculate its own group mean.

And therefore \(SSA\), being their difference, has \(kn-1 -k*(n-1) = k-1 = 2\) degrees of freedom.

These are, of course, as shown in the df column in the supernova tabel above. We can still calculate these in R, for the sake of method and clarity (and pedantry):

# Error Sum of Squares SSE
df_SSE <- frogs_long %>%
  # Takes into account "unbalanced" situations
  # Where groups are not equal in size
  group_by(TempFac) %>%
  summarise(per_group_df_SSE = n() - 1) %>%
  summarise(df_SSE = sum(per_group_df_SSE)) %>%
  as.numeric()


## Overall Sum of Squares SST
df_SST <- frogs_long %>%
  summarise(df_SST = n() - 1) %>%
  as.integer()


# Treatment Sum of Squares SSA
k <- length(unique(frogs_long$TempFac))
df_SSA <- k - 1

The degrees of freedom for the quantities are:

df_SST
df_SSE
df_SSA
[1] 59
[1] 57
[1] 2

Now we are ready to compute the F-statistic: dividing each sum-of-squares byt its degrees of freedom gives us variances which we will compare, using the F-statistic as a ratio:

# Finally F_Stat!
# Combine the sum-square_error for each level of the factor
# Weighted by degrees of freedom **per level**
# Which are of course equal here ;-D

MSE <- frogs_within_groups %>%
  summarise(mean_square_error = sum(group_error_squares / df_SSE)) %>%
  as.numeric()
MSE
[1] 1.322807
##
MSA <- SSA / df_SSA # This is OK
MSA
[1] 510.4667
##
F_stat <- MSA / MSE
F_stat
[1] 385.8966

The F-stat is compared with a critical value of the F-statistic, F_crit which is computed using the formula for the f-distribution in R. As with our hypothesis tests, we set the significance level to \(\alpha = 0.95\), but here with the Bonferroni correction, and quote the two relevant degrees of freedom as parameters to qf() which computes the critical F value F_critical as a quartile:

F_crit <-
  qf(
    p = (1 - 0.05 / 3), # Significance level is 5% + Bonferroni Correction
    df1 = df_SSA, # Numerator degrees of freedom
    df2 = df_SSE # Denominator degrees of freedom
  )
F_crit
F_stat
[1] 4.403048
[1] 385.8966

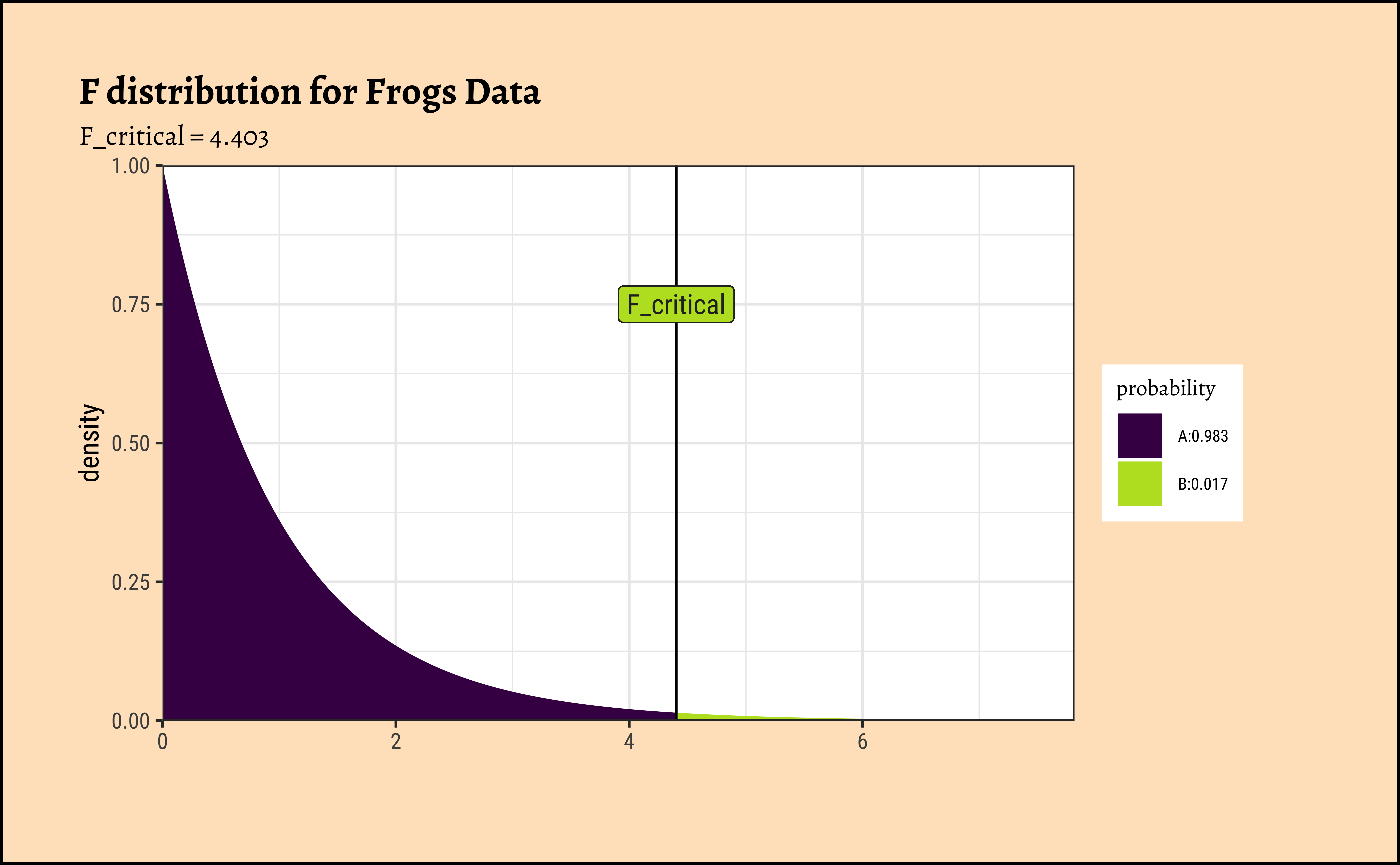

The F_crit value can also be seen in a plot4,5:

Show the Code
ggplot2::theme_set(new = theme_custom())

mosaic::xpf(
  q = F_crit,
  df1 = df_SSA, df2 = df_SSE, method = "gg",
  log.p = FALSE, lower.tail = TRUE,
  return = "plot"
) %>%
  gf_vline(xintercept = F_crit) %>%
  gf_label(0.75 ~ F_crit,
    label = "F_critical",
    inherit = F, show.legend = F
  ) %>%
  gf_labs(
    title = "F distribution for Frogs Data",
    subtitle = "F_critical = 4.403"
  ) %>%
  gf_refine(
    scale_y_continuous(expand = c(0, 0)),
    scale_x_continuous(expand = c(0, 0))
  )

Any value of F more than the F_crit occurs with smaller probability than \(0.05/3 = 0.017\). Our F_stat is much higher than F_crit, by orders of magnitude! And so we can say with confidence that Temperature has a significant effect on spawn Time.

And that is how ANOVA computes!

7 Stating the Model

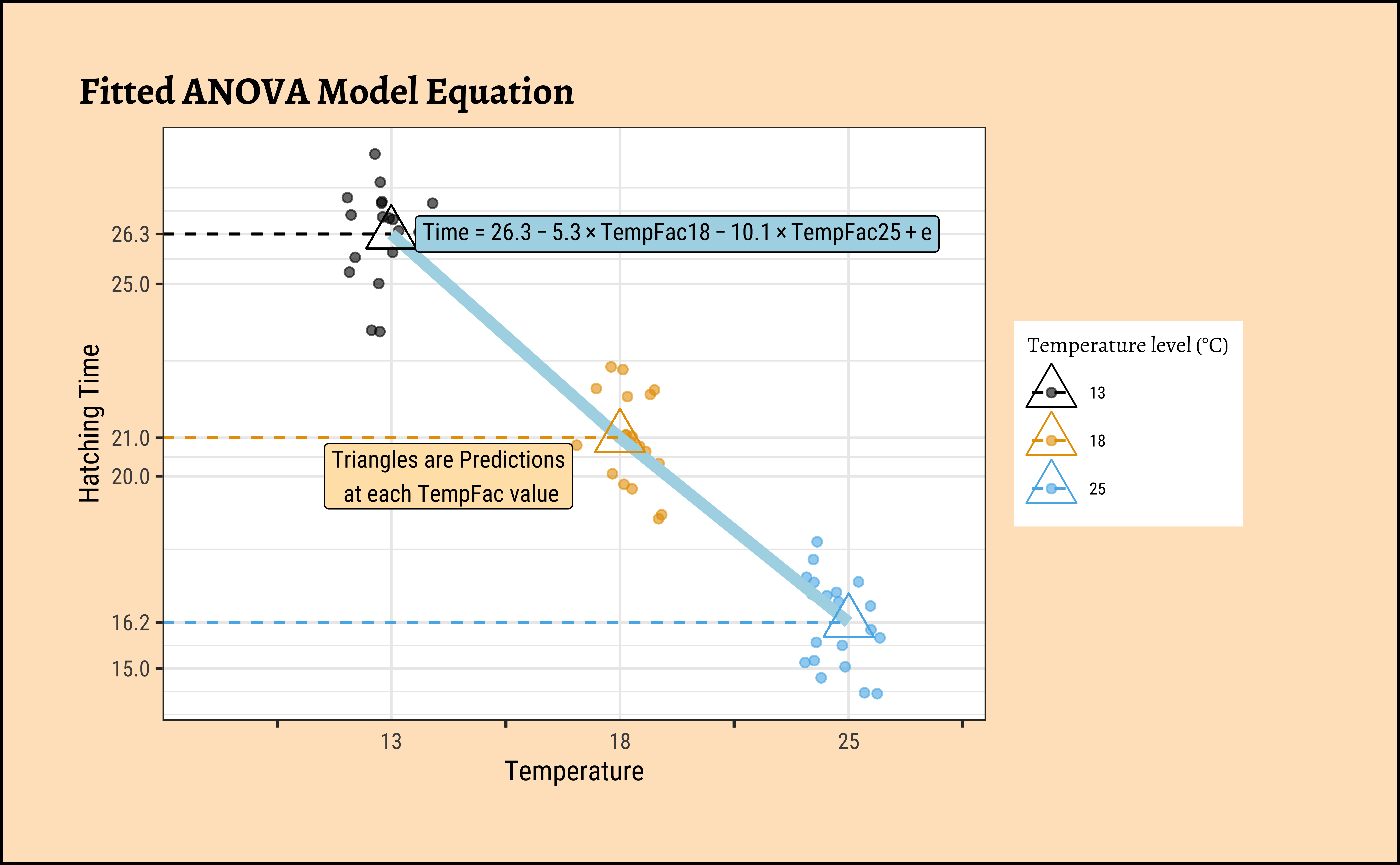

And supernova gives us a nice linear equation relating Hatching_Time to TempFac:

supernova::equation(frogs_anova)
Fitted equation:
Time = 26.3 + -5.3*TempFac18 + -10.1*TempFac25 + e

TempFac18 and TempFac25 are binary {0,1} coded variables, representing the test situation. e is the remaining error. The equation models the means at each value of TempFac.

Show the Code
# https://www.statology.org/r-geom_path-each-group-consists-of-only-one-observation/

## Plot the Equation over the Scatterplot
frogs_long %>%
  mutate(fitted = fitted(frogs_anova)) %>%
  gf_jitter(Time ~ TempFac,
    width = 0.2, alpha = 0.6,
    color = ~TempFac,
    data = .
  ) %>%
  gf_summary(
    group = ~1, # See the reference link above. Damn!!!
    fun = "mean", geom = "line", colour = "lightblue",
    lty = 1, linewidth = 2
  ) %>%
  gf_point(fitted ~ TempFac,
    color = ~TempFac,
    shape = 2,
    size = 6
  ) %>%
  gf_segment(fitted + fitted ~ 0 + TempFac, linetype = 2, color = ~TempFac) %>%
  gf_annotate("label",
    label = TeX(r"($Time = 26.3 - 5.3 \times TempFac18  -10.1 \times TempFac25 + e$)", output = "character"),
    parse = TRUE,
    y = 26.3, x = 2.25,
    size = 3, color = "black", fill = "lightblue"
  ) %>%
  gf_annotate("label",
    label = "Triangles are Predictions\n at each TempFac value", y = 20, x = 1.25,
    size = 3, color = "black", fill = "moccasin"
  ) %>%
  gf_labs(
    title = "Fitted ANOVA Model Equation",
    x = "Temperature", y = "Hatching Time"
  ) %>%
  gf_refine(
    scale_colour_paletteer_d("ggthemes::colorblind"),
    guides(colour = guide_legend(title = "Temperature level (°C)"))
  ) %>%
  gf_refine(
    scale_x_discrete(guide = "prism_bracket"),
    scale_y_continuous(breaks = c(10, 15, (26.3 - 10.1), 20, (26.3 - 5.3), 25, 26.3, 30, 35))
  )

8 Workflow: Checking ANOVA Assumptions

ANOVA makes 3 fundamental assumptions:

  1. Data (and errors) are normally distributed.
  2. Variances are equal.
  3. Observations are independent.

We can check these using checks and graphs.

8.1 Checks for Normality

The shapiro.wilk test tests if a vector of numeric data is normally distributed and rejects the hypothesis of normality when the p-value is less than or equal to 0.05.

shapiro.test(x = frogs_long$Time)

    Shapiro-Wilk normality test

data:  frogs_long$Time
W = 0.92752, p-value = 0.001561

The p-value is very low and we cannot reject the (alternative) hypothesis that the overall data is not normal. How about *normality at each level of the TempFac factor?

NoteGroup-wise Normality

We will use an advanced dplyr technique to do this. We will first group the data by TempFac, then use dplyr::group_modify() to apply the shapiro.test() function to each of these groups. Finally we will use broom::tidy() to convert the output of shapiro.test() into a tidy dataframe. See the code below.

Show the Code
frogs_long %>%
  group_by(TempFac) %>%
  group_modify(~ .x %>%
    select(Time) %>%
    as_vector() %>%
    shapiro.test() %>%
    broom::tidy())

The shapiro.wilk test makes a NULL Hypothesis that the data are normally distributed and estimates the probability that the given data could have happened by chance. Except for TempFac = 18 the p.values are less than 0.05 and we can reject the NULL hypothesis that each of these is normally distributed. Perhaps this is a sign that we need more than 20 samples per factor level. Let there be more frogs !!! இன்னும தவளைகள் வேண்டும்!! !!

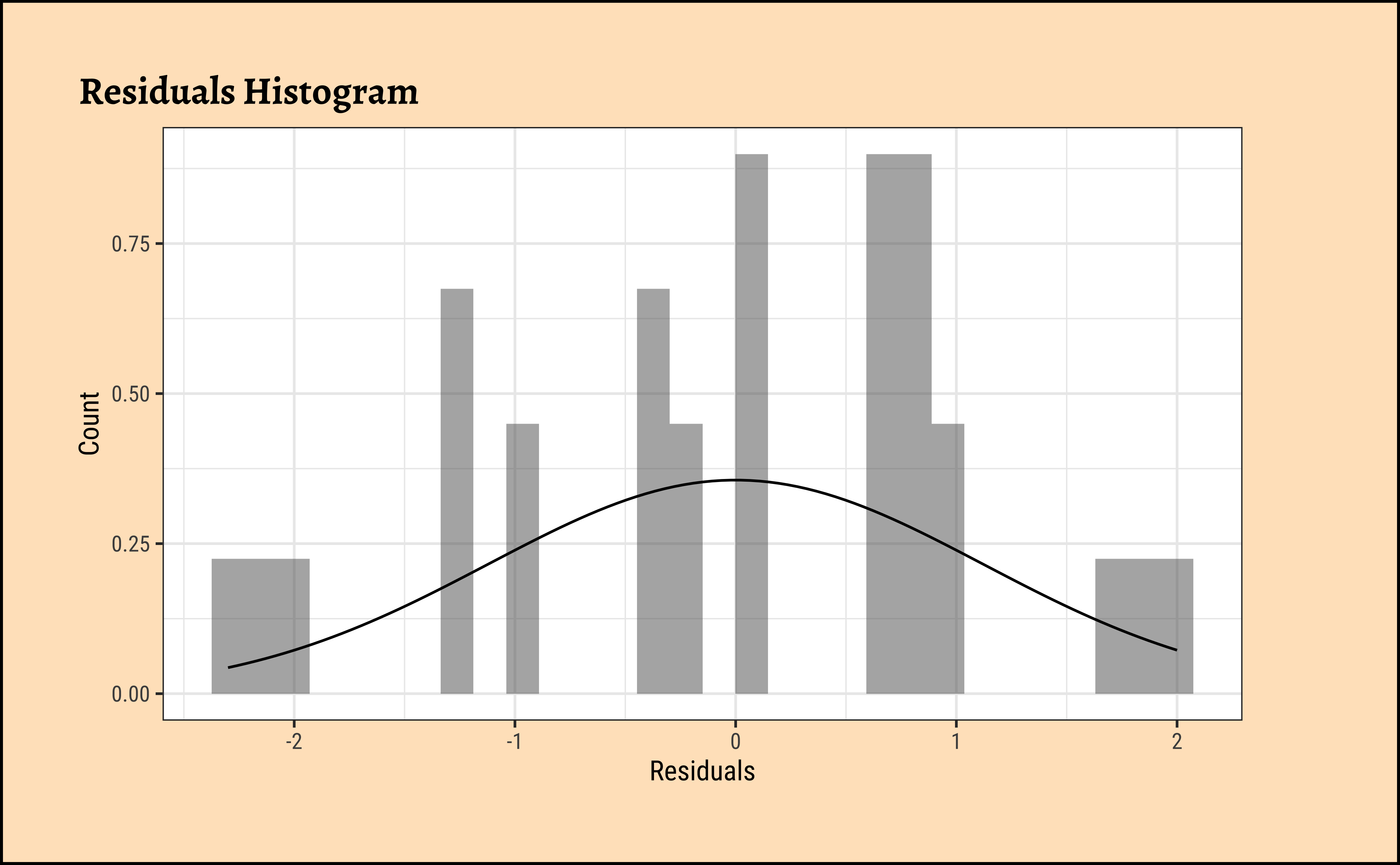

We can also check the residuals post-model:

Show the Code
ggplot2::theme_set(new = theme_custom())

frogs_anova$residuals %>%
  as_tibble() %>%
  gf_dhistogram(~value, data = .) %>%
  gf_labs(
    title = "Residuals Histogram",
    x = "Residuals", y = "Count"
  ) %>%
  gf_fitdistr()
##

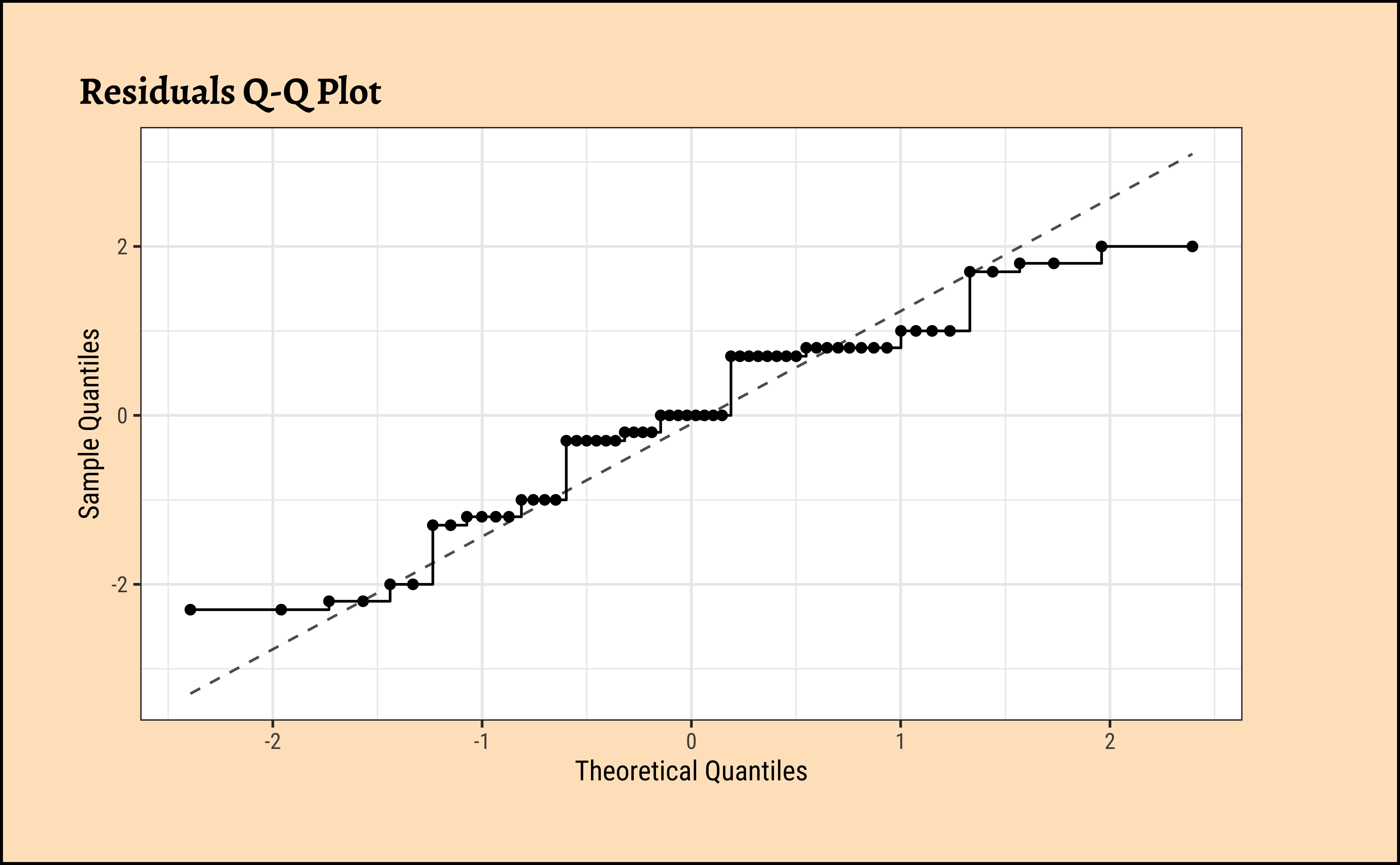

frogs_anova$residuals %>%
  as_tibble() %>%
  gf_qq(~value, data = .) %>%
  gf_qqstep() %>%
  gf_labs(
    title = "Residuals Q-Q Plot",
    x = "Theoretical Quantiles", y = "Sample Quantiles"
  ) %>%
  gf_qqline()

shapiro.test(frogs_anova$residuals)

    Shapiro-Wilk normality test

data:  frogs_anova$residuals
W = 0.94814, p-value = 0.01275

Unsurprisingly, the residuals are also not normally distributed either. We really need more samples / observations!! But the differences in means are so large that we can still be confident of the results.

8.2 Check for Similar Variance

Response data with different variances at different levels of an explanatory variable are said to exhibit heteroscedasticity. This violates one of the assumptions of ANOVA.

To check if the Time readings are similar in variance across levels of TempFac, we can use the Levene Test, or since our per-group observations are not normally distributed, a non-parametric rank-based Fligner-Killeen Test. The NULL hypothesis is that the data are with similar variances. The tests assess how probable this is with the given data assuming this NULL hypothesis:

frogs_long %>%
  group_by(TempFac) %>%
  summarise(variance = var(Time))

Not too different…OK on with the tests…

DescTools::LeveneTest(Time ~ TempFac, data = frogs_long)
##
fligner.test(Time ~ TempFac, data = frogs_long)

    Fligner-Killeen test of homogeneity of variances

data:  Time by TempFac
Fligner-Killeen:med chi-squared = 0.53898, df = 2, p-value = 0.7638

It seems that there is no cause for concern here; the data do not have significantly different variances at different levels of TempFac.

8.3 Independent Observations

This is an experiment design concern; the way the data is gathered must be specified such that data for each level of the factors ( factor combinations if there are more than one) should be independent.

9 Workflow: Effect Size

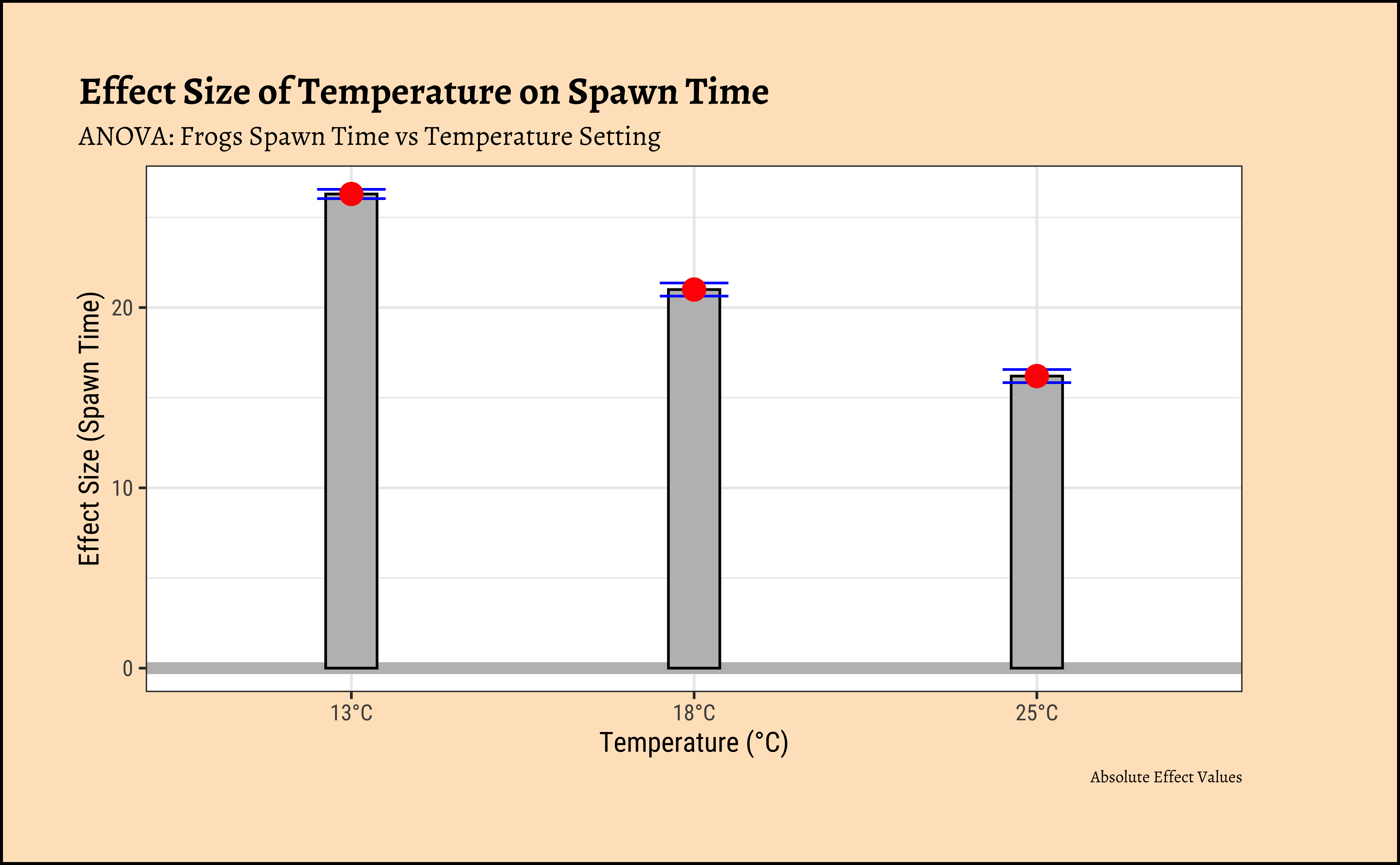

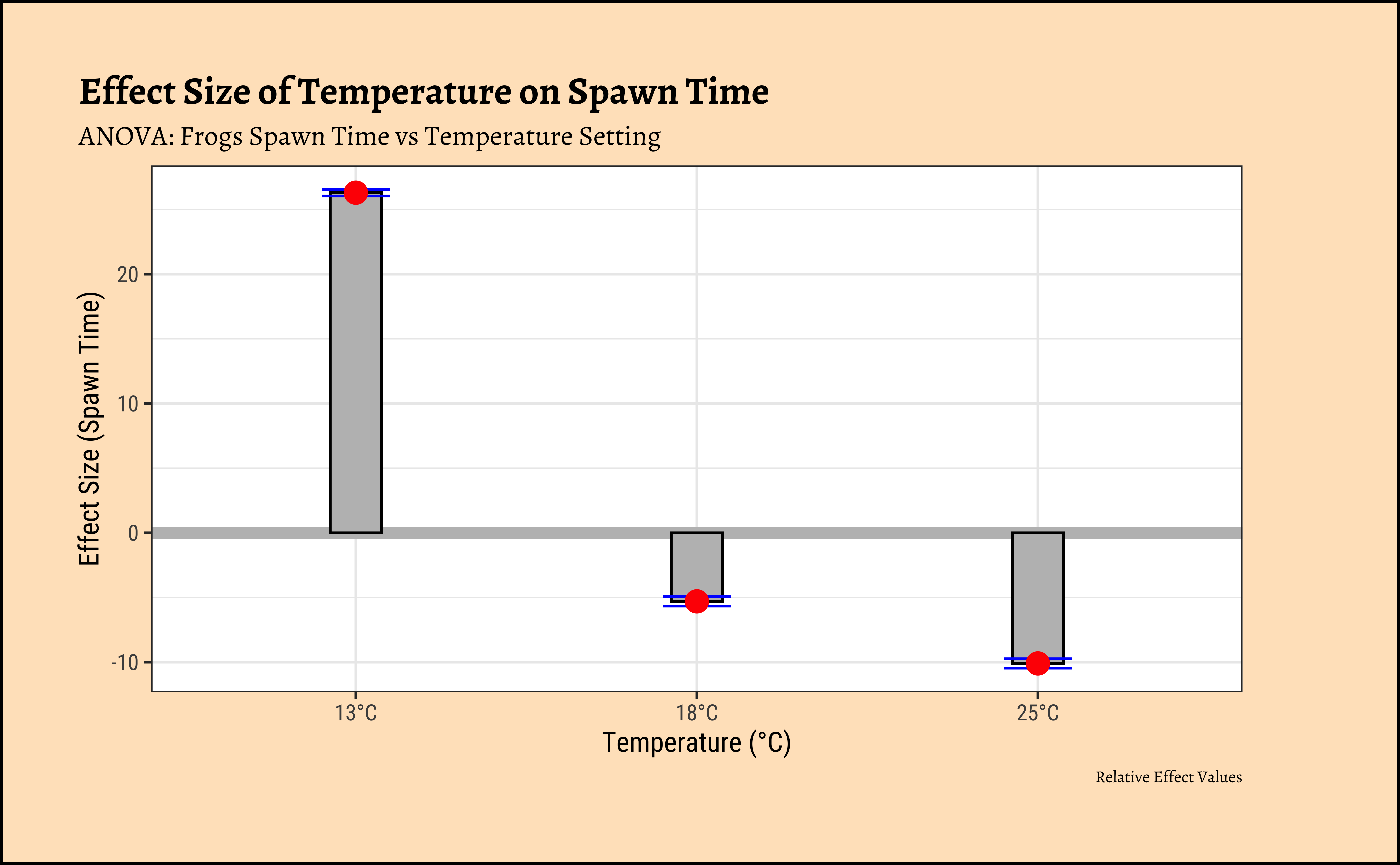

The simplest way to find the actual effect sizes detected by an ANOVA test is something we have already done, with the supernova package: Here is the table and plot again:

ggplot2::theme_set(new = theme_custom())

frogs_supernova <-
  supernova::pairwise(frogs_anova,
    plot = TRUE,
    alpha = 0.05,
    correction = "Bonferroni"
  )

frogs_supernova$TempFac

This table, the plot, and the equation we set up earlier all give us the sense of how the TempFac affects Time. The differences are given pair-wise between levels of the Qual factor, TempFac, and the standard error has been declared in pooled fashion (all groups together).

9.1 Using other packages : ggstatsplot

There is a very neat package called ggstatsplot6 that allows us to plot very comprehensive statistical graphs. Let us quickly do this:

Show the Code
ggplot2::theme_set(new = theme_custom())

library(ggstatsplot)
frogs_long %>%
  ggstatsplot::ggbetweenstats(
    x = TempFac, y = Time,
    colour = TempFac, alpha = 0.8,
    type = "parametric",
    p.adjust.method = "bonferroni",
    conf.level = 0.95,
    # Remove the violin plots
    violin.args = list(width = 0.0)
  ) +

  scale_colour_paletteer_d("ggthemes::colorblind") +
  labs(
    title = "ANOVA : Frogs Spawn Time vs Temperature Setting",
    x = "Temperature (°C)", y = "Spawn Time (days)",
    subtitle = "", caption = ""
  )

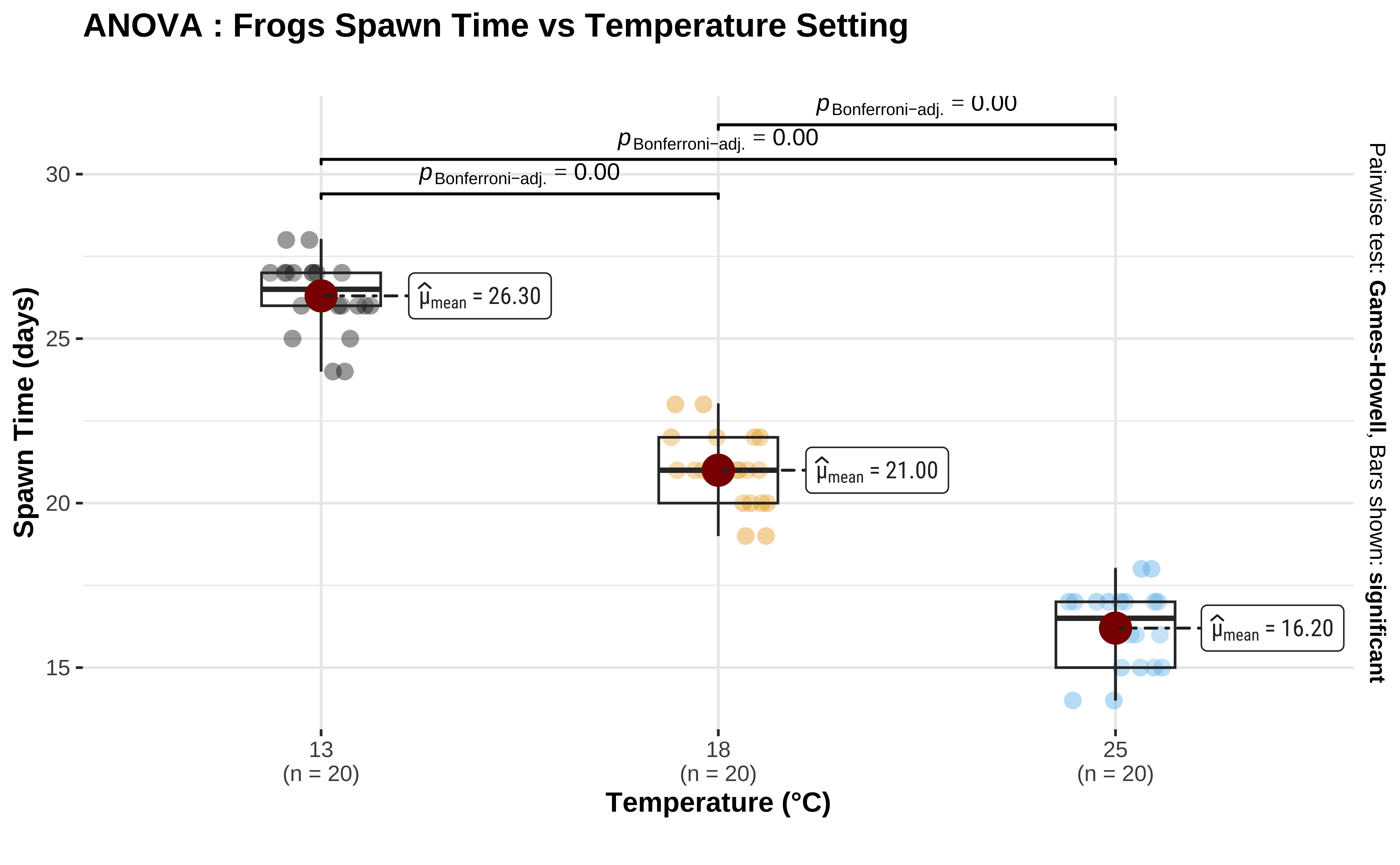

Figure 1: ggstatsplot ANOVA

This plot also shows the \(p.value = 0\) for each pairwise comparison, attesting to its significance.

The ggstatsplot package is very useful for quick visualizations of statistical tests.

10 Workflow: ANOVA using Permutation Tests

We wish to establish the significance of the effect size due to each of the levels in TempFac. From the normality tests conducted earlier we see that except at one level of TempFac, the times are are not normally distributed. Hence we opt for a Permutation Test to check for significance of effect.

As remarked in Ernst7, the non-parametric permutation test can be both exact and also intuitively easier for students to grasp.

We proceed with a Permutation Test for TempFac. We shuffle the levels (13, 18, 25) randomly between the Times and repeat the ANOVA test each time and calculate the F-statistic. The Null distribution is the distribution of the F-statistic over the many permutations and the p-value is given by the proportion of times the F-statistic equals or exceeds that observed.

We will use infer to do this: We calculate the observed F-stat with infer, which also has a very direct, if verbose, syntax for doing permutation tests:

observed_infer <-
  frogs_long %>%
  specify(Time ~ TempFac) %>%
  hypothesise(null = "independence") %>%
  calculate(stat = "F")
observed_infer

We see that the observed F-Statistic is of course \(385.8966\) as before. Now we use infer to generate a NULL distribution using permutation of the factor TempFac:

null_dist_infer <- frogs_long %>%
  specify(Time ~ TempFac) %>%
  hypothesise(null = "independence") %>%
  generate(reps = 4999, type = "permute") %>%
  calculate(stat = "F")
##
null_dist_infer
##

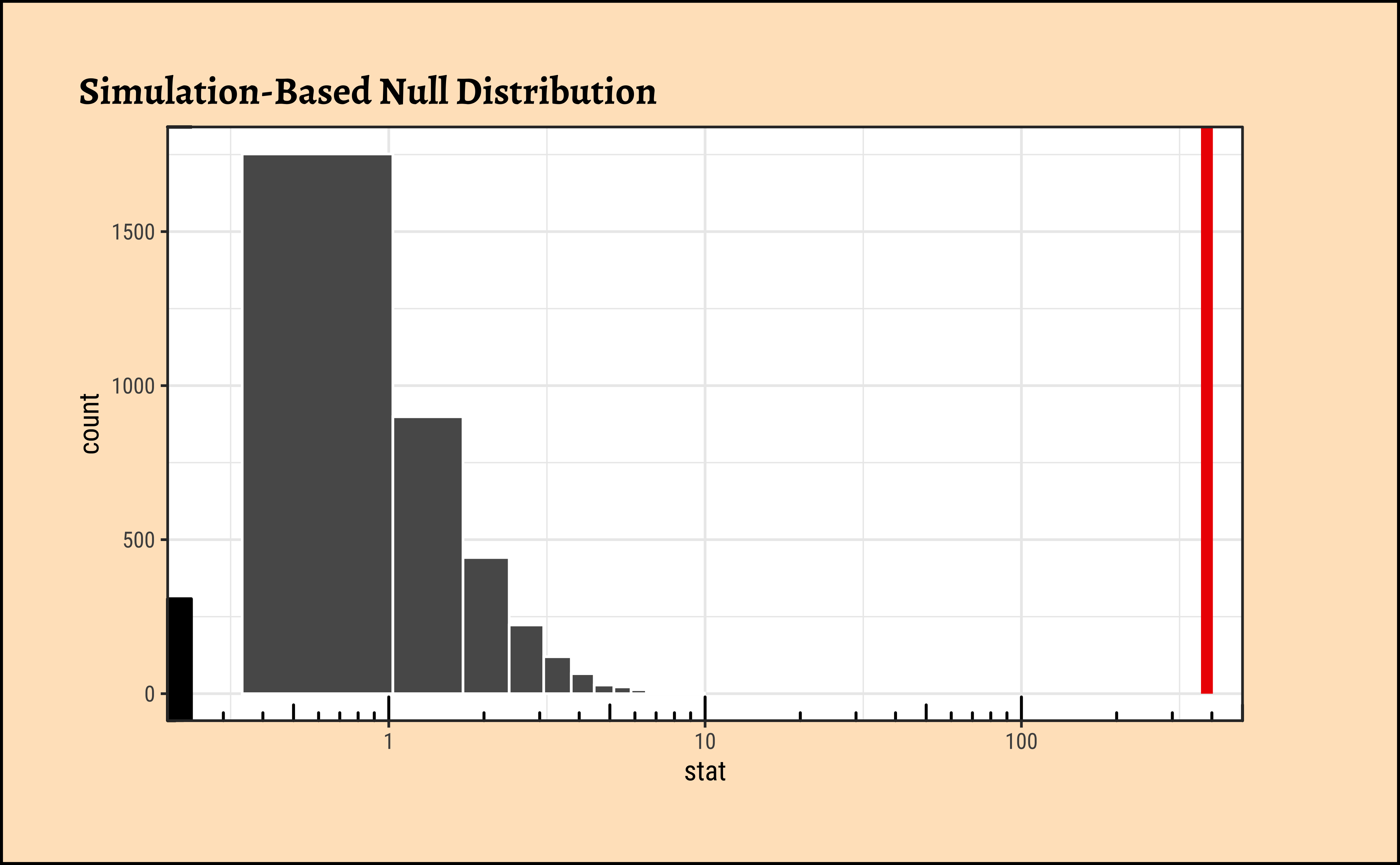

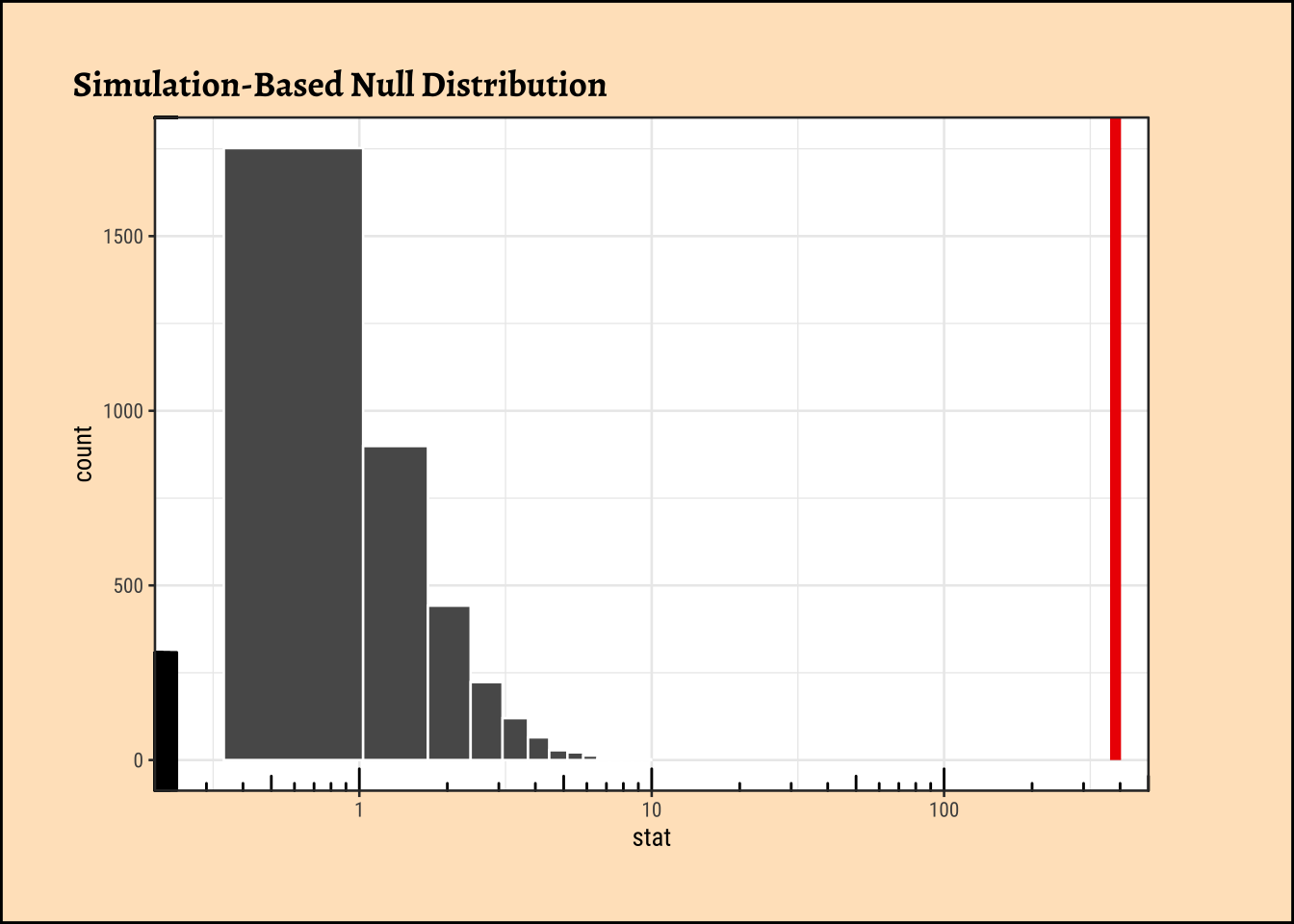

null_dist_infer %>%
  visualise(method = "simulation") +
  shade_p_value(obs_stat = observed_infer$stat, direction = "right") +
  scale_x_continuous(trans = "log10", expand = c(0, 0)) +
  coord_cartesian(xlim = c(0.2, 500), clip = "off") +
  annotation_logticks(outside = FALSE) +
  theme_custom()

As seen, the infer based permutation test also shows that the permutationally generated F-statistics are nowhere near that which was observed. The effect of TempFac is very strong.

11 Wait, But Why?

  • In marketing, design, or business research, similar quantities may be measured across different locations, or stores, or categories of people, for instance.
  • ANOVA is the tool to decide if the Quant variable has differences across the Qual categories.
  • This approach can be extended to more than one Qual variable, and also if there is another Quant variable in the mix.

12 Conclusions

We have discussed ANOVA as a means of modelling the effects of a Categorical variable on a Continuous (Quant) variable. ANOVA can be carried out using the standard formula aov when assumptions on distributions, variances, and independence are met. Permutation ANOVA tests can be carried out when these assumptions do not quite hold.

NoteTwo-Way ANOVA

What if we have two Categorical variables as predictors?

We then need to perform a Two-Way ANOVA analysis, where we look at the predictors individually (main effects) and together (interaction effects). Here too, we need to verify if the number of observations are balanced across all combinations of factors of the two Qualitative predictors. There are three different classical approaches (Type1, Type2, and Type3 ANOVA) for testing hypotheses in ANOVA for unbalanced designs, as they are called. (Langsrud 2003).

NoteInformative Hypothesis Testing: Models which incorporate a priori Beliefs

Note that when we specified our research question, we had no specific hypothesis about the means, other than that they might be different. In many situations, we may have reason to believe in the relative “ordering” of the means for different levels of the Categorical variable. The one-sided t-test is the simplest example (e.g., \(\mu_1 >= 0\) and \(\mu_1 >= \mu_2\)); this readily extends to the multi-parameter setting, where more than one inequality constraint can be imposed on the parameters (e.g., \(\mu_1 <= \mu_2 <= \mu_3\).
It is possible to incorporate these beliefs into the ANOVA model, using what is called as informative hypothesis testing, which have certain advantages compared to unconstrained models. The R package called restriktor has the capability to develop such models with beliefs.

13 Your Turn

  1. Try the simple datasets at https://www.performingmusicresearch.com/datasets/

  2. Can you try to ANOVA-analyse the datasets we dealt with in plotting Groups with Boxplots?

14 References

  1. The ANOVA tutorial at Our Coding Club
  2. Antoine Soetewey. How to: one-way ANOVA by hand. https://statsandr.com/blog/how-to-one-way-anova-by-hand/
  3. ANOVA in R - Stats and R https://statsandr.com/blog/anova-in-r/
  4. Michael Crawley.(2013) The R Book,second edition. Chapter 11.
  5. David C Howell, Permutation Tests for Factorial ANOVA Designs
  6. Marti Anderson, Permutation tests for univariate or multivariate analysis of variance and regression
  7. Judd, Charles M., Gary H. McClelland, and Carey S. Ryan.(2017). “Introduction to Data Analysis.” In, 1–9. Routledge. https://doi.org/10.4324/9781315744131-1.
  8. Patil, I. (2021). Visualizations with statistical details: The ‘ggstatsplot’ approach. Journal of Open Source Software, 6(61), 3167, doi:10.21105/joss.03167
  9. Langsrud, Øyvind. (2003). ANOVA for unbalanced data: Use type II instead of type III sums of squares. Statistics and Computing. 13. 163-167.
  10. Kim TK. (2017). Understanding one-way ANOVA using conceptual figures. Korean J Anesthesiol. 2017 Feb;70(1):22-26. https://ekja.org/upload/pdf/kjae-70-22.pdf
  11. Anova – Type I/II/III SS explained.https://mcfromnz.wordpress.com/2011/03/02/anova-type-iiiiii-ss-explained/
  12. Bidyut Ghosh (Aug 28, 2017). One-way ANOVA in R. https://datascienceplus.com/one-way-anova-in-r/
R Package Citations
Package Version Citation
DescTools 0.99.60 Signorell (2025)
ggcompare 0.0.5 Wang (2025)
ggprism 1.0.7 Dawson (2025)
ggstatsplot 0.13.2 Patil (2021)
ggtext 0.1.2 Wilke and Wiernik (2022)
restriktor 0.6.10 Vanbrabant and Kuiper (2024)
supernova 3.0.0 Blake et al. (2024)
Blake, Adam, Jeff Chrabaszcz, Ji Son, and Jim Stigler. 2024. supernova: Judd, McClelland, & Ryan Formatting for ANOVA Output. https://doi.org/10.32614/CRAN.package.supernova.
Dawson, Charlotte. 2025. ggprism: A “ggplot2” Extension Inspired by “GraphPad Prism”. https://doi.org/10.32614/CRAN.package.ggprism.
Langsrud, Øyvind. 2003. Statistics and Computing 13 (2): 163–67. https://doi.org/10.1023/a:1023260610025.
Patil, Indrajeet. 2021. “Visualizations with statistical details: The ‘ggstatsplot’ approach.” Journal of Open Source Software 6 (61): 3167. https://doi.org/10.21105/joss.03167.
Signorell, Andri. 2025. DescTools: Tools for Descriptive Statistics. https://doi.org/10.32614/CRAN.package.DescTools.
Vanbrabant, Leonard, and Rebecca Kuiper. 2024. restriktor: Restricted Statistical Estimation and Inference for Linear Models. https://doi.org/10.32614/CRAN.package.restriktor.
Wang, Hao. 2025. ggcompare: Mean Comparison in “ggplot2”. https://doi.org/10.32614/CRAN.package.ggcompare.
Wilke, Claus O., and Brenton M. Wiernik. 2022. ggtext: Improved Text Rendering Support for “ggplot2”. https://doi.org/10.32614/CRAN.package.ggtext.

14.1 An AI Generated Explanation of the Statistical Model

We have used the statlingua package to generate an AI explanation of the statistical model t1_amas we have used in this module. statlingua interfaces to the ellmer package, which in turn interfaces to the ollama API for AI explanations. The AI model used is llama3.1, and the explanation is tailored for a novice audience with moderate verbosity.

NoteAI Generated Explanation

The command was run in the Console and the results pasted into this Quarto document. I have not edited this at all. Do look for complex verbiage and outright hallucinatory responses.

Show the Code
library(ellmer)
library(statlingua)
client <- ellmer::chat_ollama(model = "llama3.1", echo = FALSE)
###

exam_context <- "This model uses ANOVA to analyze the effect of temperature on frog spawn time. The model is based on a dataset where frog spawn were observed at three different temperatures (13°C, 18°C, and 25°C) to see how long it took for them to spawn. There were 20 samples of spawn at each temperature. The data was in wide form and pivotted to long form, and the Temperature variable was converted to a 3-level factor. The goal is to determine if the temperature-factor has a significant impact on the time it takes for frogs to spawn."

explanation_anova <- statlingua::explain(frogs_anova,
  client = client,
  context = exam_context,
  audience = "novice", verbosity = "moderate"
) # moderate / detailed
ANOVA Model Output Interpretation

The provided ANOVA table summarizes the results of our ANOVA linear regression model, examining the effect of temperature on frog spawn time.

  • Df (Degrees of Freedom): These values represent the number of parameters in each part of the model.
    • TempFac (2): The two degrees of freedom for the temperature factor correspond to the three levels of the factor minus one. This reflects that there are two independent comparisons within the factor, which can be derived by considering pair-wise differences between levels while controlling for the overall mean, effectively reducing the complexity from a 3-level comparison down to 2.
    • Residuals (57): The 57 degrees of freedom for residuals is the total number of observations minus the model’s intercept and slope parameters. Assuming no loss of data during preparation, this should be your sample size minus one, reflecting how much variation in the observed times might not be explained by temperature.
  • Sum Sq (Sum of Squares): These values measure the amount of variation attributable to each part of the model.
    • TempFac: The sum of squares for the temp factor is substantial relative to the variability attributed to random errors, indicating that temperature has a significant impact on frog spawn time.
    • Residuals: This value represents how much observed variance remains unexplained by our model’s inclusion of temperature differences.
  • Mean Sq (Mean Square) and F Value:
    • The mean square for any effect is its sum of squares divided by its degrees of freedom.
    • In this case, the much larger Mean Square for TempFac reflects both that it explains more variance & includes more variation per comparison due to having fewer degrees of freedoms.
    • F Value (385.9): The F value represents a test statistic comparing the explained variance by temp factor to what we’d expect from randomized chance under our assumption of no effect.
  • Pr(>F) (<2e-16 ): A very small Pr(>F) associated with a significant result indicates there is practically zero probability (considered a very strong effect size) that data as extreme would be observed in experiments testing the null hypothesis assuming temp has no overall effect on spawn time. **** signifies this high level of statistical significance.
Section: Checking Assumptions

Given the complexity and specificity to research goals, consulting with your dataset on assumptions via graphical explorations is prudent. Here are brief suggestions tailored to our specific model: 1. Plot residuals against fitted values or a normal Q-Q plot. 2. For linearity: Observe whether scatter around each predicted spawn time level is fairly random for each temperature category in the residuals vs fitted-values plot. 3. For homoscedasticity (Constant Deviation): Assess if variability at any one temperature’s range of times are roughly consistent with those from other temperatures’ ranges, also considering graphical displays. 4. Normality: Perform a Shapiro-Wilk test on these model residuals to quantify how far the data deviates from normality; it’s especially relevant given the small size & homogeneity across treatment conditions.

Section: Interpreting Coefficients

Given the context and ANOVA results here, we’d primarily focus on the Temperature (TempFac levels) effect, not the individual intercept or coefficients of the TempFac categories themselves as our primary object of study is their collective overall influence relative to randomness. - The practical interpretation would be that any 2-level average comparison between our treatment conditions, as determined by the specific model parameters and the nature of factorization here applied toward ANOVA analysis. For a simple way of framing your result consider whether some combination of those two categories produces an increase or decrease in observed spawn times when comparing at higher temperatures than our baseline (for example).

Conclusion

The strong effect and extremely low p-value for the TempFac indicate that temperature has a significant impact on frog spawn time, and there is strong evidence to support an overall association. Your analysis thus supports your research goal and provides valuable insight into how temperature influences this ecological process.

In summary, using linear regression or ANOVA (equivalent in terms of testing effect magnitude) with careful attention toward ensuring the appropriateness of linearity assumptions allows drawing significant conclusions about how the temperature factor affects frog spawn times.

Back to top

Footnotes

  1. The ANOVA tutorial at Our Coding Club.↩︎

  2. https://github.com/UCLATALL/supernova↩︎

  3. https://www.openintro.org/go/?id=anova-supplement↩︎

  4. Pruim R, Kaplan DT, Horton NJ (2017). “The mosaic Package: Helping Students to ‘Think with Data’ Using R.” The R Journal, 9(1), 77–102. https://journal.r-project.org/archive/2017/RJ-2017-024/index.html.↩︎

  5. mosaic::xpf() gives both a graph and the probabilities.↩︎

  6. ggplot2 Based Plots with Statistical Details • ggstatsplot https://indrajeetpatil.github.io/ggstatsplot/↩︎

  7. Ernst, Michael D. 2004. “Permutation Methods: A Basis for Exact Inference.” Statistical Science 19 (4): 676–85. doi:10.1214/088342304000000396.↩︎

Citation

BibTeX citation:
@online{v.2023,
  author = {V., Arvind},
  title = {Comparing {Multiple} {Means} with {ANOVA}},
  date = {2023-03-28},
  url = {https://madhatterguide.netlify.app/content/courses/Analytics/20-Inference/Modules/130-ThreeMeansOrMore/},
  langid = {en},
  abstract = {ANOVA to investigate how frogspawn hatching time varies
    with temperature.}
}
For attribution, please cite this work as:
V., Arvind. 2023. “Comparing Multiple Means with ANOVA.” March 28, 2023. https://madhatterguide.netlify.app/content/courses/Analytics/20-Inference/Modules/130-ThreeMeansOrMore/.
