Abstract
Predicting Qualitative Target Variables

1 Setting up R Packages

Plot Fonts and Theme

Show the Code
library(systemfonts)
library(showtext)
library(ggrepel)
library(marquee)
## Clean the slate
systemfonts::clear_local_fonts()
systemfonts::clear_registry()
##
showtext_opts(dpi = 96) # set DPI for showtext
sysfonts::font_add(
  family = "Alegreya",
  regular = "../../../../../../fonts/Alegreya-Regular.ttf",
  bold = "../../../../../../fonts/Alegreya-Bold.ttf",
  italic = "../../../../../../fonts/Alegreya-Italic.ttf",
  bolditalic = "../../../../../../fonts/Alegreya-BoldItalic.ttf"
)

sysfonts::font_add(
  family = "Roboto Condensed",
  regular = "../../../../../../fonts/RobotoCondensed-Regular.ttf",
  bold = "../../../../../../fonts/RobotoCondensed-Bold.ttf",
  italic = "../../../../../../fonts/RobotoCondensed-Italic.ttf",
  bolditalic = "../../../../../../fonts/RobotoCondensed-BoldItalic.ttf"
)
showtext_auto(enable = TRUE) # enable showtext
##
theme_custom <- function() {
  theme_bw(base_size = 10) +

    theme_sub_axis(
      title = element_text(
        family = "Roboto Condensed",
        size = 8
      ),
      text = element_text(
        family = "Roboto Condensed",
        size = 6
      )
    ) +

    theme_sub_legend(
      text = element_text(
        family = "Roboto Condensed",
        size = 6
      ),
      title = element_text(
        family = "Alegreya",
        size = 8
      )
    ) +

    theme_sub_plot(
      title = element_text(
        family = "Alegreya",
        size = 14, face = "bold"
      ),
      title.position = "plot",
      subtitle = element_text(
        family = "Alegreya",
        size = 10
      ),
      caption = element_text(
        family = "Alegreya",
        size = 6
      ),
      caption.position = "plot"
    )
}

## Use available fonts in ggplot text geoms too!
ggplot2::update_geom_defaults(geom = "text", new = list(
  family = "Roboto Condensed",
  face = "plain",
  size = 3.5,
  color = "#2b2b2b"
))
ggplot2::update_geom_defaults(geom = "label", new = list(
  family = "Roboto Condensed",
  face = "plain",
  size = 3.5,
  color = "#2b2b2b"
))

ggplot2::update_geom_defaults(geom = "marquee", new = list(
  family = "Roboto Condensed",
  face = "plain",
  size = 3.5,
  color = "#2b2b2b"
))
ggplot2::update_geom_defaults(geom = "text_repel", new = list(
  family = "Roboto Condensed",
  face = "plain",
  size = 3.5,
  color = "#2b2b2b"
))
ggplot2::update_geom_defaults(geom = "label_repel", new = list(
  family = "Roboto Condensed",
  face = "plain",
  size = 3.5,
  color = "#2b2b2b"
))

## Set the theme
ggplot2::theme_set(new = theme_custom())

## tinytable options
options("tinytable_tt_digits" = 2)
options("tinytable_format_num_fmt" = "significant_cell")
options(tinytable_html_mathjax = TRUE)


## Set defaults for flextable
flextable::set_flextable_defaults(font.family = "Roboto Condensed")

2 Introduction

Sometimes the dependent variable is Qualitative: an either/or categorization. for example, or the variable we want to predict might be won or lost the contest, has an ailment or not, voted or not in the last election, or graduated from college or not. There might even be more than two categories such as voted for Congress, BJP, or Independent; or never smoker, former smoker, or current smoker.

3 The Logistic Regression Model

We saw with the General Linear Model that it models the mean of a target Quantitative variable as a linear weighted sum of the predictor variables:

\[ \Large{y \sim N(x_i^T * \beta, ~~\sigma^2)} \tag{1}\]

This model is considered to be general because of the dependence on potentially more than one explanatory variable, v.s. the simple linear model:1 \(y = \beta_0 + \beta_1*x_1 + \epsilon\). The general linear model gives us model “shapes” that start from a simple straight line to a p-dimensional hyperplane.

Although a very useful framework, there are some situations where general linear models are not appropriate:

  • the range of Y is restricted (e.g. binary, count)
  • the variance of Y depends on the mean (Taylor’s Law)2

How do we use the familiar linear model framework when the target/dependent variable is Categorical?

3.1 Linear Models for Categorical Targets?

Recall that we spoke of dummy-encoded Qualitative **predictor** variables for our linear models and how we would dummy encode them using numerical values, such as 0 and 1, or +1 and -1. Could we try the same way for a target categorical variable?

\[ Y_i = \beta_0 + \beta_1*X_i + \epsilon_i\\ \nonumber \] \[ where\\\ \]

\[ \begin{align} Y_i &= 0 ~ if ~~~"No"\\ \nonumber &= 1 ~ if ~~~ "Yes" \nonumber \end{align} \]

Sadly this seems to not work for categorical dependent variables using a simple linear model as before. Consider the Credit Card Default data from the package ISLR.

We see balance and income are quantitative predictors; student is a qualitative predictor, and default is a qualitative target variable. If we naively use a linear model equation as model = lm(default ~ balance, data = Default) and plot it, then…

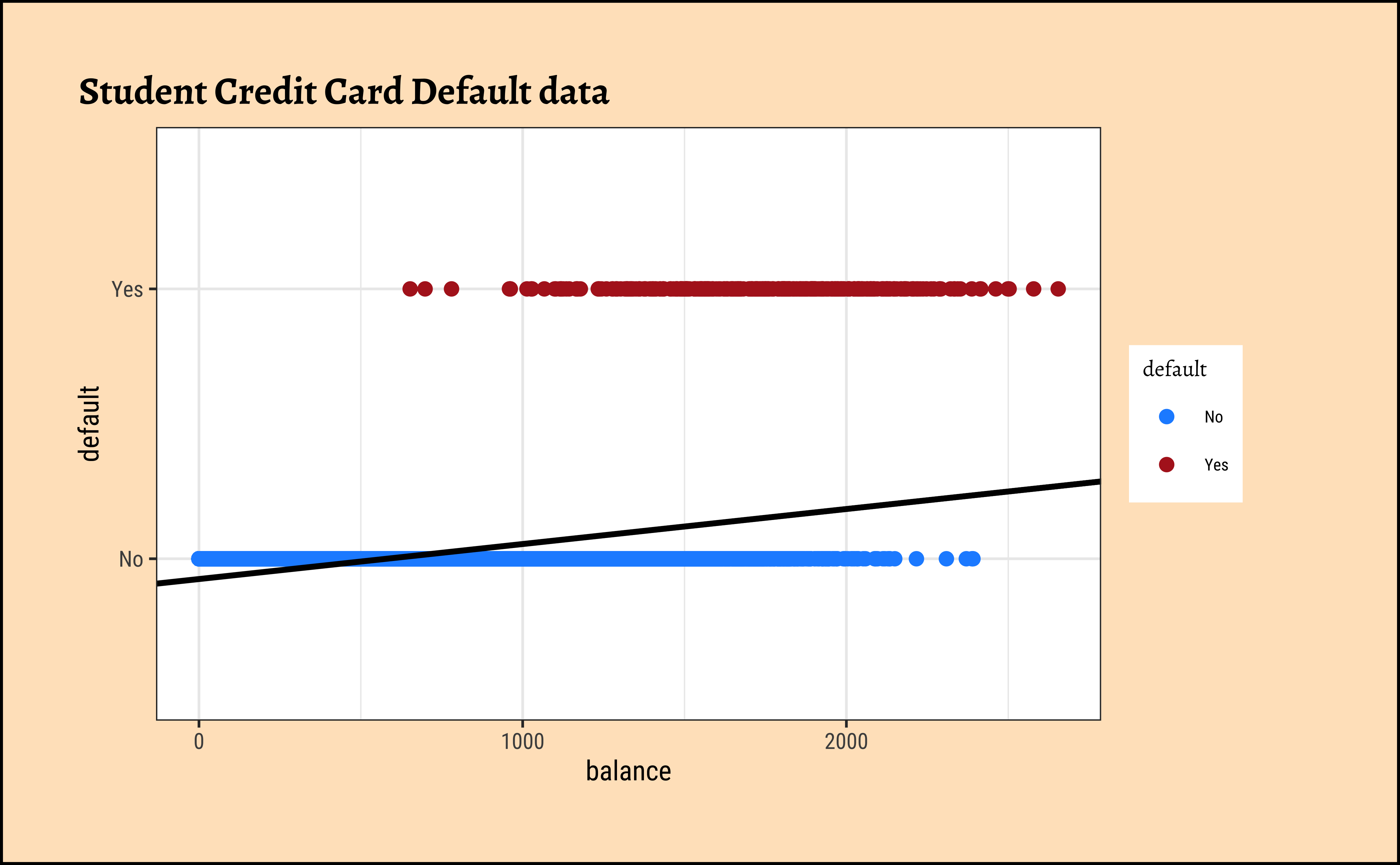

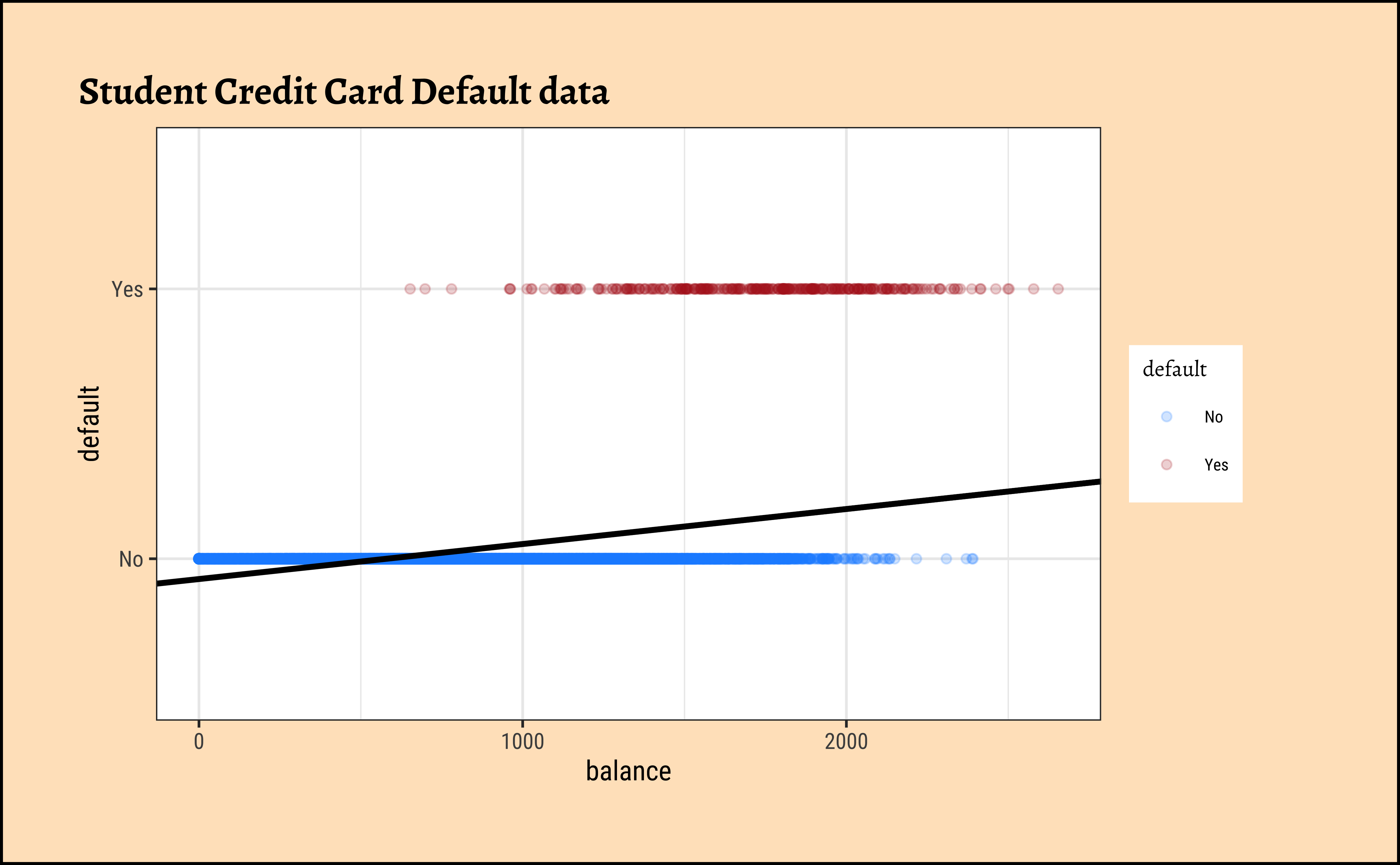

Figure 1: Naive Linear Model

…it is pretty much clear from Figure 1 that something is very odd. (no pun intended! See below!) If the only possible values for default are \(No = 0\) and \(Yes = 1\), how could we interpret predicted value of, say, \(Y_i = 0.25\) or \(Y_i = 1.55\), or perhaps \(Y_i = -0.22\)? Anything other than Yes/No is hard to interpret!

3.2 Problems…and Solutions

Where do we go from here?

1. Model Equation:

Let us state what we might desire of our model: despite this setback, we would still like our model to be as close as possible to the familiar linear model equation.

\[ Y_i = \beta_0 + \beta_1*X_i + \epsilon_i\\ \nonumber \] \[ where\\\ \]

\[ \begin{align} Y_i &= 0 ~ if ~~~"No"\\ \nonumber &= 1 ~ if ~~~ "Yes" \nonumber \end{align} \tag{2}\]

2. Predictors and Weights:

We have quantitative predictors so we still want to use a linear-weighted sum for the RHS (i.e predictor side) of the model equation. What can we try to make this work? Especially for the LHS (i.e the target side)?

3. Making the LHS continuous?

What can we try? In dummy encoding our target variable, we found a range of [0,1], which is the same range for a probability value! Could we try to use probability of the outcome as our target, even though we are interested in binary outcomes? This would still leave us with a range of \([0,1]\) for the target variable, as before.

NoteBinomially distributed target variable

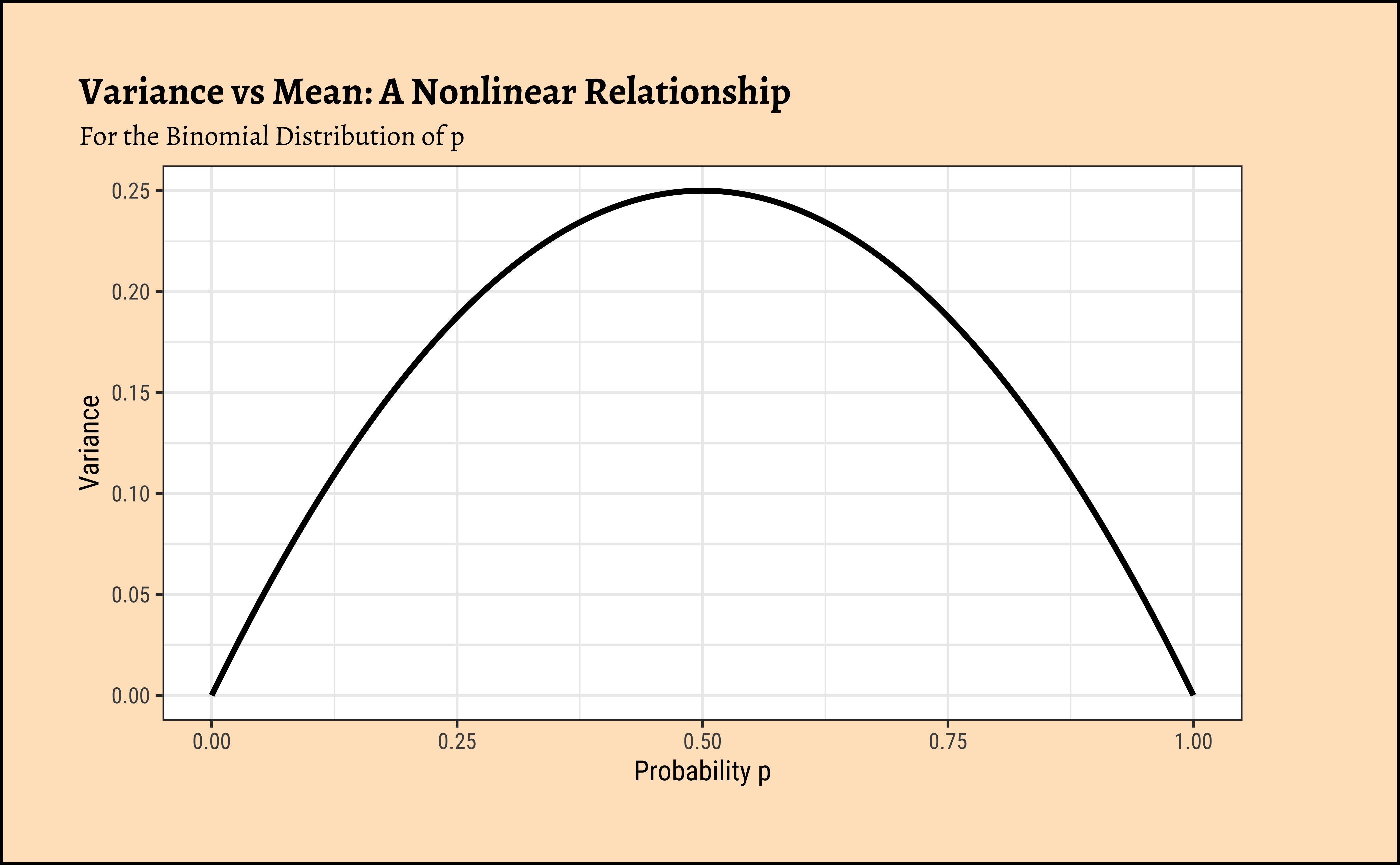

Figure 2: Variance vs Mean for Binomial Distribution

If we map our Categorical/Qualitative target variable into a Quantitative probability, we need immediately to look at the LINE assumptions in linear regression.

In linear regression, we assume a normally distributed target variable, i.e. the residuals/errors around the predicted value are normally distributed. With a categorical target variable with two levels \(0\) and \(1\) it would be impossible for the errors \(e_i = Y_i - \hat{Y_i}\) to have a normal distribution, as assumed for the statistical tests to be valid. The errors are bounded by \([0,1]\)! One candidate for the error distribution in this case is the binomial distribution, whose mean and variance are p and np(1-p) respectively.

Note immediately that the binomial variance moves with the mean! The LINE assumption of normality is clearly violated. And from the figure above, extreme probabilities (near 1 or 0) are more stable (i.e., have less error variance) than middle probabilities. So the model has “built-in” heteroscedasticity, which we need to counter with transformations such as the \(log()\) function. More on this very shortly!

4. Odds?

How would one “extend” the range of a target variable from [0,1] to \([-\infty, \infty]\) ? One step would be to try the odds of the outcome, instead of trying to predict the outcomes directly (Yes or No), or their probabilities \([0,1]\).

NoteOdds

Odds of an event with probability p of occurrence is defined as \(Odds = p/(1-p)\). As can be seen, the odds are the ratio of two probabilities, that of the event and its complement. In the Default dataset just considered, the odds of default and the odds of non-default can be calculated as:

\[ \begin{align} p(Default) &= 333/(333 + 9667)\\ \nonumber &= 0.333\\ \nonumber \end{align} \]

therefore:

\[ \begin{align} Odds~of~Default &=p(Default)/(1-p(Default))\\ \nonumber &= 0.333/(1-0.333)\\ \nonumber &= 0.5\\ \end{align} \]

and

\[ Odds~No~Default = 0.9667/(1-0.9667) = 29 \].

Now, odds cover half of real number line, i.e. \([0, \infty]\) ! Clearly, when the probability p of an event is \(0\), the odds are \(0\)…and when it nears \(1\), the odds tend to \(\infty\). So we have transformed a simple probability that lies between \([0,1]\) to odds lying between \([0, \infty]\). That’s one step towards making a linear model possible; we have “removed” one of the limits on our linear model’s prediction range by using Odds as our target variable.

5. Transformation using log()?

We need one more leap of faith: how do we convert a \([0, \infty]\) range to a \([-\infty, \infty]\)? Can we try a log transformation?

\[ log([0, \infty]) ~ = ~ [-\infty, \infty] \]

This extends the range of our Qualitative target to the same as with a Quantitative target!

There is an additional benefit if this log() transformation: the Error Distributions with Odds targets. See the plot below. Odds are a necessarily nonlinear function of probability; the slope of Odds ~ probability also depends upon the probability itself, as we saw with the probability curve earlier.

(a) Odds
(b) Log Odds

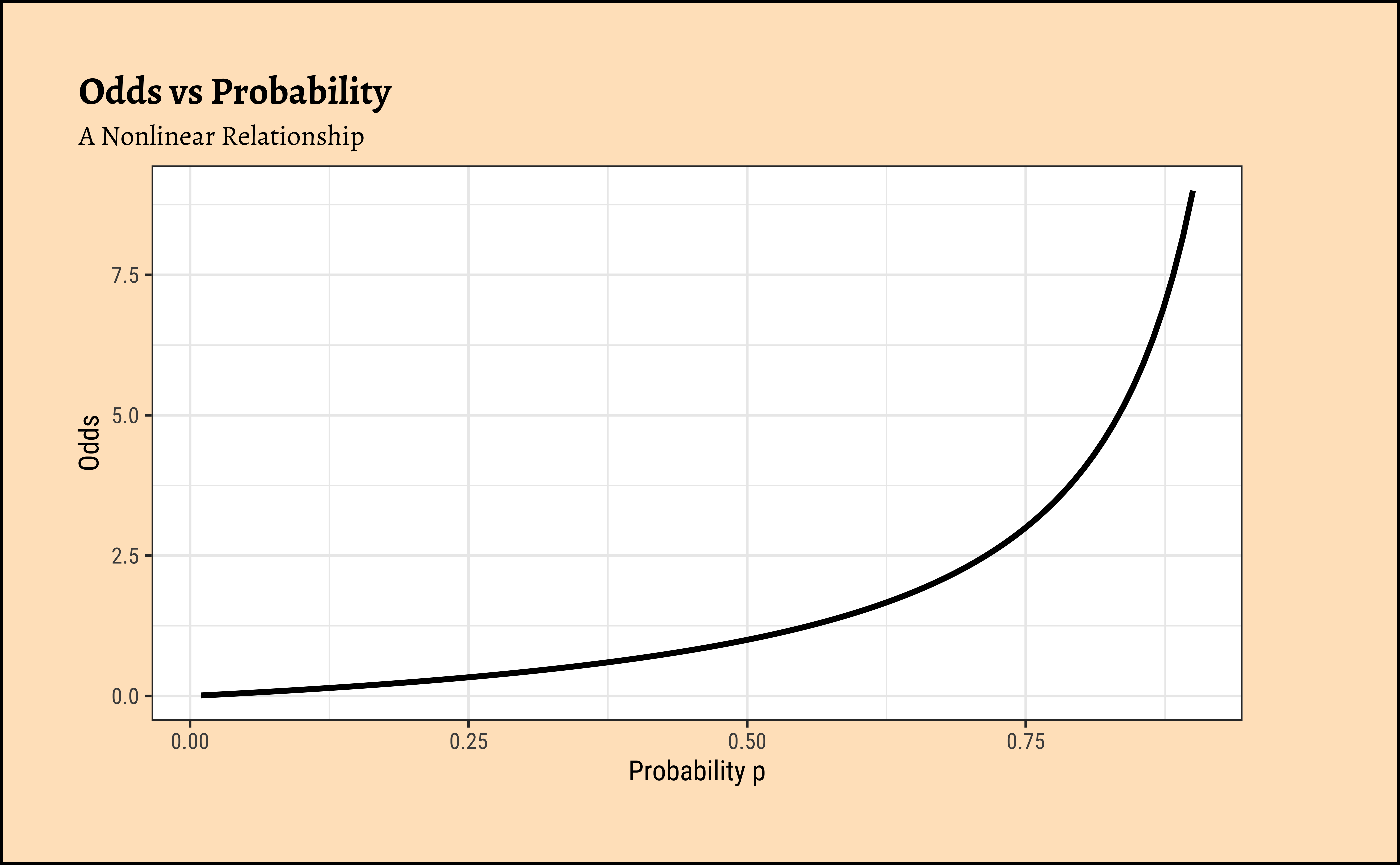

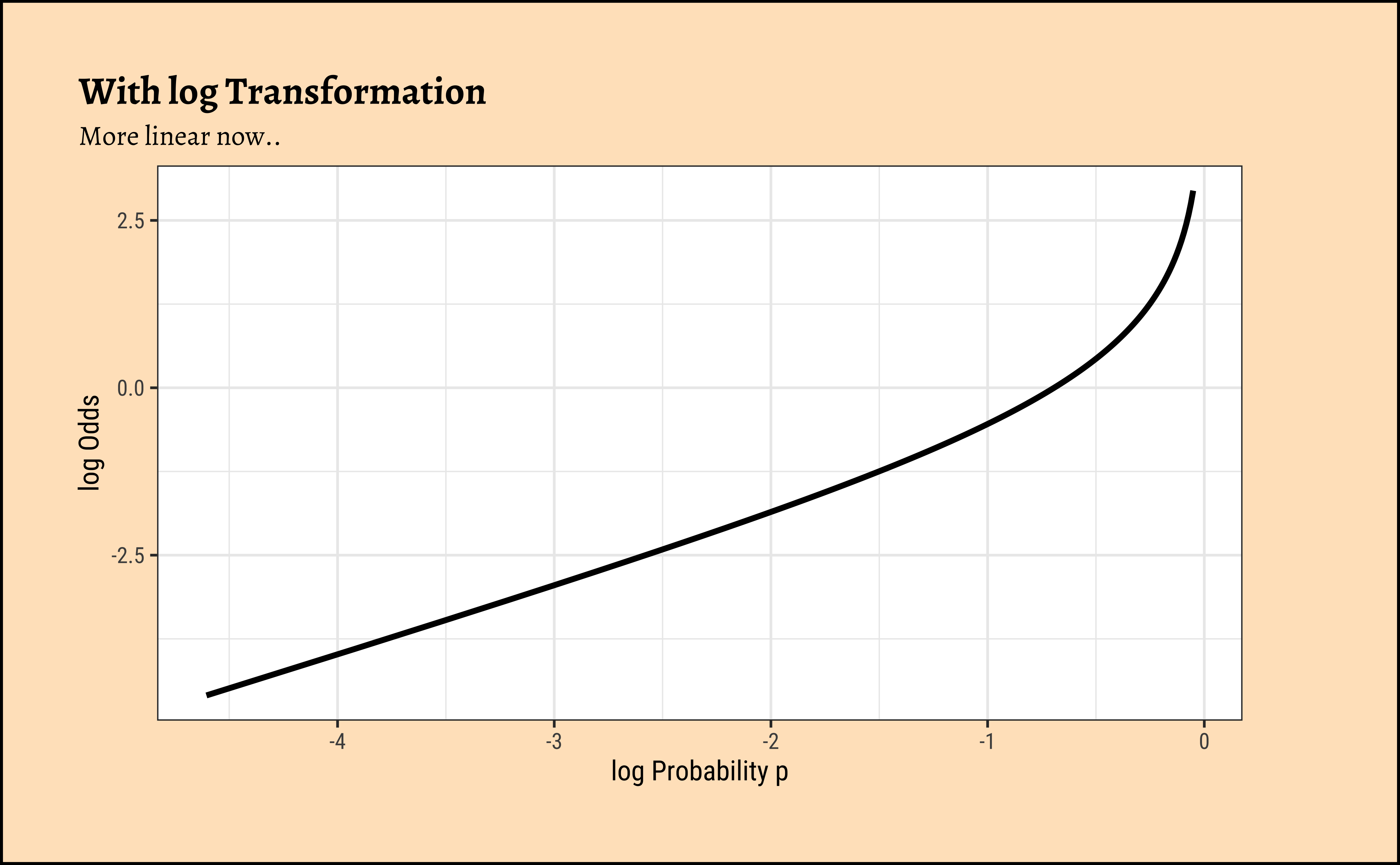

Figure 3: Odds vs Probability

To understand this issue intuitively, consider what happens to, say, a 5% change in the odds ratio near 1.0. If the odds ratio is \(1.0\), then the probabilities p and 1-p are \(0.5\), and \(0.5\). A 20% increase in the odds ratio to \(1.20\) would correspond to probabilities of \(0.545\) and \(0.455\). However, if the original probabilities were \(0.9\) and \(0.1\) for an odds ratio \(9\), then a 20% increase (in odds ratio) to \(10.8\) would correspond to probabilities of \(0.915\) and \(0.085\), a much smaller change in the probabilities. The basic curve is non-linear and the log transformation flattens this out to provide a more linear relationship, which is what we desire.

So in our model, instead of modeling odds as the dependent variable, we will use \(log(odds)\), also known as the logit, defined as:

\[ \begin{align} log(odds_i) &= log\bigg[p_i/(1-p_i)\bigg]\\ \nonumber &= logit(p_i)\\ \end{align} \tag{3}\]

This is our Logistic Regression Model, which uses a Quantitative Predictor variable to predict a Categorical target variable. We write the model as ( for the Default dataset ) :

\[ \Large{logit(default) = \beta_0 + \beta_1 * balance} \tag{4}\]

This means that:

\[ log(p(default)/(1-p(default))) = \beta_0+\beta_1 * balance \] and therefore:

\[ \begin{align} p(default) &= \frac{exp(\beta_0 + \beta_1 * balance)}{1 + exp(\beta_0 + \beta_1 * balance)}\\ &= \frac{1}{1 + exp^{-(\beta_0 + \beta_1 * balance)}} \end{align} \tag{5}\]

From the Equation 4 above it should be clear that a unit increase in balance should increase the odds of default by \(\beta_1\) units. The RHS of Equation 5 is a sigmoid function of the weighted sum of predictors and is limited to the range [0,1].

(a) naive linear regression model

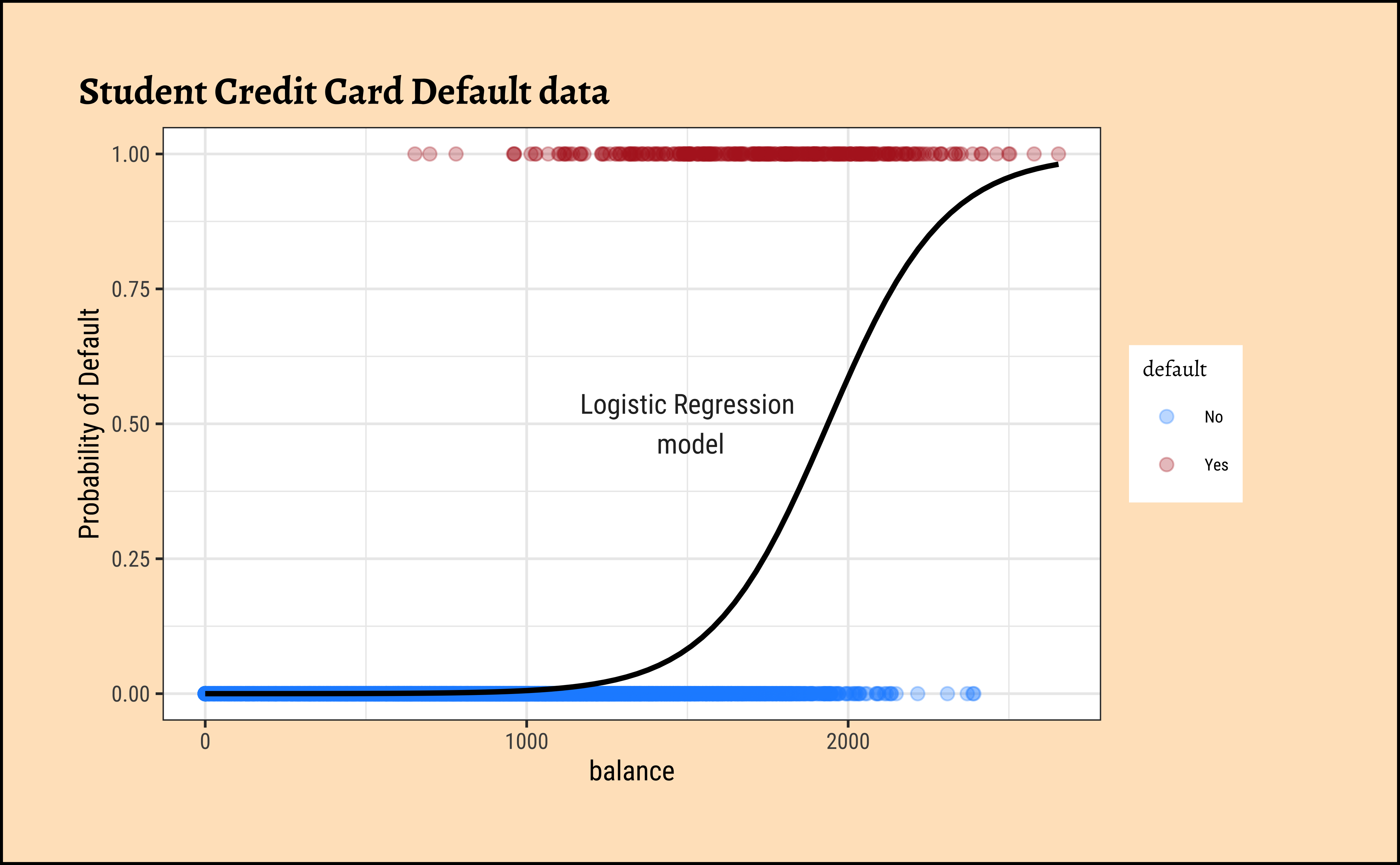

(b) logistic regression model

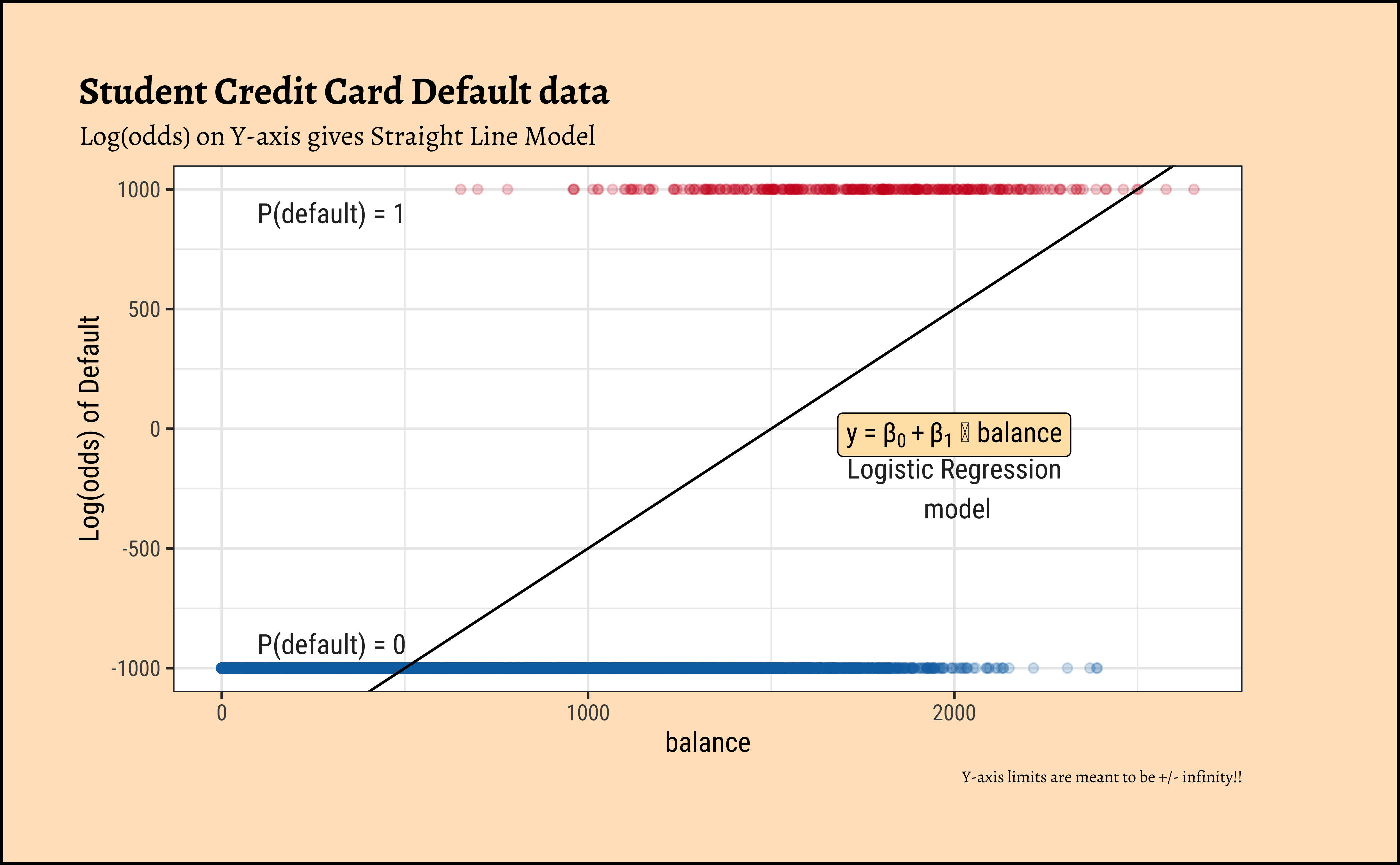

(c) log odds gives linear models
Figure 4: Model Plots

If we were to include income also as a predictor variable in the model, we might obtain something like:

\[ \begin{align} p(default) &= \frac{exp(\beta_0 + \beta_1 * balance + \beta_2 * income)}{1 + exp(\beta_0 + \beta_1 * balance + \beta_2 * income)}\\ &= \frac{1}{1 + exp^{-(\beta_0 + \beta_1 * balance + \beta_2 * income)}} \end{align} \tag{6}\]

This model Equation 6 is plotted a little differently, since it includes three variables. We’ll see this shortly, with code. The thing to note is that the formula inside the exp() is a linear combination of the predictors!

6.Estimation of Model Parameters:

The parameters \(\beta_i\) now need to be estimated. How might we do that? This last problem is that because we have made so many transformations to get to the logits that we want to model, the logic of minimizing the sum of squared errors(SSE) is no longer appropriate.

NoteInfinite SSE!!

The probabilities for default are \(0\) and \(1\). At these values the log(odds) will map respectively to \(-\infty\) and \(\infty\) 🙀. So if we naively try to take residuals, we will find that they are all \(\infty\) !! Hence the Sum of Squared Errors \(SSE\) cannot be computed and we need another way to assess the quality of our model.

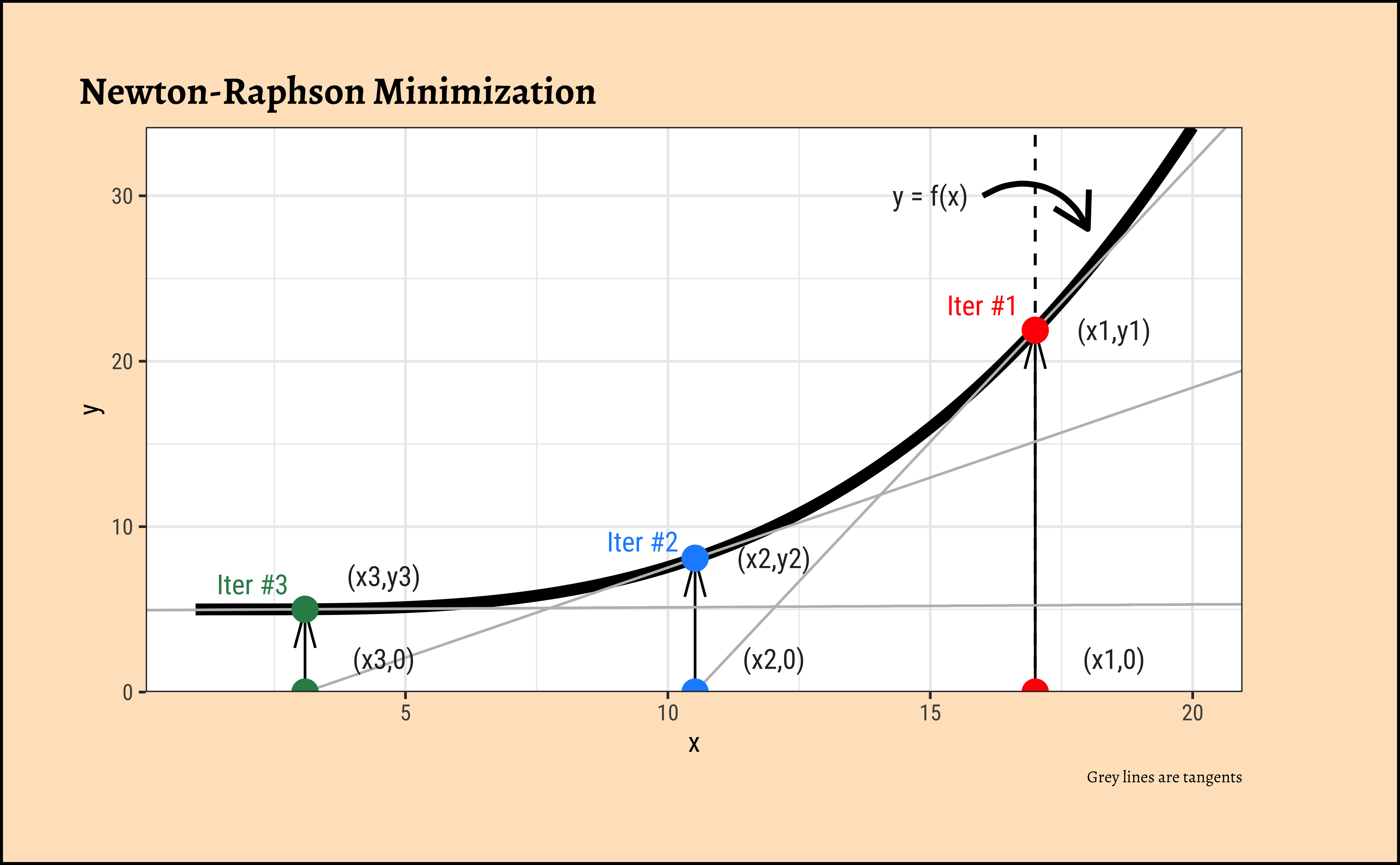

Instead, we will have to use maximum likelihood estimation(MLE) to estimate the models. The maximum likelihood method maximizes the probability of obtaining the data at hand against every choice of model parameters \(\beta_i\). (And compare that method with the \(X^2\) (“chi-squared”) test and statistic instead of t and F to evaluate the model comparisons)

4 Workflow: Breast Cancer Dataset

Let us proceed with the logistic regression workflow. We will use the well-known Wisconsin breast cancer dataset, readily available from Vincent Arel-Bundock’s website.

5 Workflow: Read the Data

cancer <- read_csv("https://vincentarelbundock.github.io/Rdatasets/csv/dslabs/brca.csv") %>%
  janitor::clean_names()
glimpse(cancer)
Rows: 569
Columns: 32
$ rownames            <dbl> 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15,…
$ x_radius_mean       <dbl> 13.540, 13.080, 9.504, 13.030, 8.196, 12.050, 13.4…
$ x_texture_mean      <dbl> 14.36, 15.71, 12.44, 18.42, 16.84, 14.63, 22.30, 2…
$ x_perimeter_mean    <dbl> 87.46, 85.63, 60.34, 82.61, 51.71, 78.04, 86.91, 7…
$ x_area_mean         <dbl> 566.3, 520.0, 273.9, 523.8, 201.9, 449.3, 561.0, 4…
$ x_smoothness_mean   <dbl> 0.09779, 0.10750, 0.10240, 0.08983, 0.08600, 0.103…
$ x_compactness_mean  <dbl> 0.08129, 0.12700, 0.06492, 0.03766, 0.05943, 0.090…
$ x_concavity_mean    <dbl> 0.066640, 0.045680, 0.029560, 0.025620, 0.015880, …
$ x_concave_pts_mean  <dbl> 0.047810, 0.031100, 0.020760, 0.029230, 0.005917, …
$ x_symmetry_mean     <dbl> 0.1885, 0.1967, 0.1815, 0.1467, 0.1769, 0.1675, 0.…
$ x_fractal_dim_mean  <dbl> 0.05766, 0.06811, 0.06905, 0.05863, 0.06503, 0.060…
$ x_radius_se         <dbl> 0.2699, 0.1852, 0.2773, 0.1839, 0.1563, 0.2636, 0.…
$ x_texture_se        <dbl> 0.7886, 0.7477, 0.9768, 2.3420, 0.9567, 0.7294, 1.…
$ x_perimeter_se      <dbl> 2.058, 1.383, 1.909, 1.170, 1.094, 1.848, 1.735, 2…
$ x_area_se           <dbl> 23.560, 14.670, 15.700, 14.160, 8.205, 19.870, 20.…
$ x_smoothness_se     <dbl> 0.008462, 0.004097, 0.009606, 0.004352, 0.008968, …
$ x_compactness_se    <dbl> 0.014600, 0.018980, 0.014320, 0.004899, 0.016460, …
$ x_concavity_se      <dbl> 0.023870, 0.016980, 0.019850, 0.013430, 0.015880, …
$ x_concave_pts_se    <dbl> 0.013150, 0.006490, 0.014210, 0.011640, 0.005917, …
$ x_symmetry_se       <dbl> 0.01980, 0.01678, 0.02027, 0.02671, 0.02574, 0.014…
$ x_fractal_dim_se    <dbl> 0.002300, 0.002425, 0.002968, 0.001777, 0.002582, …
$ x_radius_worst      <dbl> 15.110, 14.500, 10.230, 13.300, 8.964, 13.760, 15.…
$ x_texture_worst     <dbl> 19.26, 20.49, 15.66, 22.81, 21.96, 20.70, 31.82, 2…
$ x_perimeter_worst   <dbl> 99.70, 96.09, 65.13, 84.46, 57.26, 89.88, 99.00, 8…
$ x_area_worst        <dbl> 711.2, 630.5, 314.9, 545.9, 242.2, 582.6, 698.8, 5…
$ x_smoothness_worst  <dbl> 0.14400, 0.13120, 0.13240, 0.09701, 0.12970, 0.149…
$ x_compactness_worst <dbl> 0.17730, 0.27760, 0.11480, 0.04619, 0.13570, 0.215…
$ x_concavity_worst   <dbl> 0.239000, 0.189000, 0.088670, 0.048330, 0.068800, …
$ x_concave_pts_worst <dbl> 0.12880, 0.07283, 0.06227, 0.05013, 0.02564, 0.065…
$ x_symmetry_worst    <dbl> 0.2977, 0.3184, 0.2450, 0.1987, 0.3105, 0.2747, 0.…
$ x_fractal_dim_worst <dbl> 0.07259, 0.08183, 0.07773, 0.06169, 0.07409, 0.083…
$ y                   <chr> "B", "B", "B", "B", "B", "B", "B", "B", "B", "B", …
skim(cancer)
Data summary
Name cancer
Number of rows 569
Number of columns 32
_______________________
Column type frequency:
character 1
numeric 31
________________________
Group variables None

Variable type: character

skim_variable n_missing complete_rate min max empty n_unique whitespace
y 0 1 1 1 0 2 0

Variable type: numeric

skim_variable n_missing complete_rate mean sd p0 p25 p50 p75 p100 hist
rownames 0 1 285.00 164.40 1.00 143.00 285.00 427.00 569.00 ▇▇▇▇▇
x_radius_mean 0 1 14.13 3.52 6.98 11.70 13.37 15.78 28.11 ▂▇▃▁▁
x_texture_mean 0 1 19.29 4.30 9.71 16.17 18.84 21.80 39.28 ▃▇▃▁▁
x_perimeter_mean 0 1 91.97 24.30 43.79 75.17 86.24 104.10 188.50 ▃▇▃▁▁
x_area_mean 0 1 654.89 351.91 143.50 420.30 551.10 782.70 2501.00 ▇▃▂▁▁
x_smoothness_mean 0 1 0.10 0.01 0.05 0.09 0.10 0.11 0.16 ▁▇▇▁▁
x_compactness_mean 0 1 0.10 0.05 0.02 0.06 0.09 0.13 0.35 ▇▇▂▁▁
x_concavity_mean 0 1 0.09 0.08 0.00 0.03 0.06 0.13 0.43 ▇▃▂▁▁
x_concave_pts_mean 0 1 0.05 0.04 0.00 0.02 0.03 0.07 0.20 ▇▃▂▁▁
x_symmetry_mean 0 1 0.18 0.03 0.11 0.16 0.18 0.20 0.30 ▁▇▅▁▁
x_fractal_dim_mean 0 1 0.06 0.01 0.05 0.06 0.06 0.07 0.10 ▆▇▂▁▁
x_radius_se 0 1 0.41 0.28 0.11 0.23 0.32 0.48 2.87 ▇▁▁▁▁
x_texture_se 0 1 1.22 0.55 0.36 0.83 1.11 1.47 4.88 ▇▅▁▁▁
x_perimeter_se 0 1 2.87 2.02 0.76 1.61 2.29 3.36 21.98 ▇▁▁▁▁
x_area_se 0 1 40.34 45.49 6.80 17.85 24.53 45.19 542.20 ▇▁▁▁▁
x_smoothness_se 0 1 0.01 0.00 0.00 0.01 0.01 0.01 0.03 ▇▃▁▁▁
x_compactness_se 0 1 0.03 0.02 0.00 0.01 0.02 0.03 0.14 ▇▃▁▁▁
x_concavity_se 0 1 0.03 0.03 0.00 0.02 0.03 0.04 0.40 ▇▁▁▁▁
x_concave_pts_se 0 1 0.01 0.01 0.00 0.01 0.01 0.01 0.05 ▇▇▁▁▁
x_symmetry_se 0 1 0.02 0.01 0.01 0.02 0.02 0.02 0.08 ▇▃▁▁▁
x_fractal_dim_se 0 1 0.00 0.00 0.00 0.00 0.00 0.00 0.03 ▇▁▁▁▁
x_radius_worst 0 1 16.27 4.83 7.93 13.01 14.97 18.79 36.04 ▆▇▃▁▁
x_texture_worst 0 1 25.68 6.15 12.02 21.08 25.41 29.72 49.54 ▃▇▆▁▁
x_perimeter_worst 0 1 107.26 33.60 50.41 84.11 97.66 125.40 251.20 ▇▇▃▁▁
x_area_worst 0 1 880.58 569.36 185.20 515.30 686.50 1084.00 4254.00 ▇▂▁▁▁
x_smoothness_worst 0 1 0.13 0.02 0.07 0.12 0.13 0.15 0.22 ▂▇▇▂▁
x_compactness_worst 0 1 0.25 0.16 0.03 0.15 0.21 0.34 1.06 ▇▅▁▁▁
x_concavity_worst 0 1 0.27 0.21 0.00 0.11 0.23 0.38 1.25 ▇▅▂▁▁
x_concave_pts_worst 0 1 0.11 0.07 0.00 0.06 0.10 0.16 0.29 ▅▇▅▃▁
x_symmetry_worst 0 1 0.29 0.06 0.16 0.25 0.28 0.32 0.66 ▅▇▁▁▁
x_fractal_dim_worst 0 1 0.08 0.02 0.06 0.07 0.08 0.09 0.21 ▇▃▁▁▁

We see that there are 31 Quantitative variables, all named as x_***, and one Qualitative variable,y, which is a two-level target. (B = Benign, M = Malignant). The dataset has 569 observations, and no missing data.

5.1 Workflow: Data Munging

Let us rename y as diagnosis and take two other Quantitative parameters as predictors, suitably naming them too. We will also create a binary-valued variable called diagnosis_malignant (Binary, Malignant = 1, Benign = 0) for use as a target in our logistic regression model.

Show the Code
cancer_modified <- cancer %>%
  rename(
    "diagnosis" = y,
    "radius_mean" = x_radius_mean,
    "concave_points_mean" = x_concave_pts_mean
  ) %>%
  ## Convert diagnosis to factor
  mutate(diagnosis = factor(
    diagnosis,
    levels = c("B", "M"),
    labels = c("B", "M")
  )) %>%
  ## New Variable
  mutate(diagnosis_malignant = if_else(diagnosis == "M", 1, 0)) %>%
  select(radius_mean, concave_points_mean, diagnosis, diagnosis_malignant)

cancer_modified
NoteResearch Question

How can we predict whether a cancerous tumour is Benign or Malignant, based on the variable radius_mean alone, and with both radius_mean and concave_points_mean?

5.2 Workflow: EDA

Let us use GGally to plot a set of combo-plots for our modified dataset:

Show the Code
ggplot2::theme_set(new = theme_custom())

cancer_modified %>%
  select(diagnosis, radius_mean, concave_points_mean) %>%
  GGally::ggpairs(
    mapping = aes(colour = diagnosis),
    switch = "both",
    # axis labels in more traditional locations(left and bottom)

    progress = FALSE,
    # no compute progress messages needed

    # Choose the diagonal graphs (always single variable! Think!)
    diag = list(continuous = "densityDiag", alpha = 0.3),
    # choosing density

    # Choose lower triangle graphs, two-variable graphs
    lower = list(continuous = wrap("points", alpha = 0.3)),
    title = "Cancer Pairs Plot #1"
  ) +
  scale_color_brewer(
    palette = "Set1",
    aesthetics = c("color", "fill")
  )

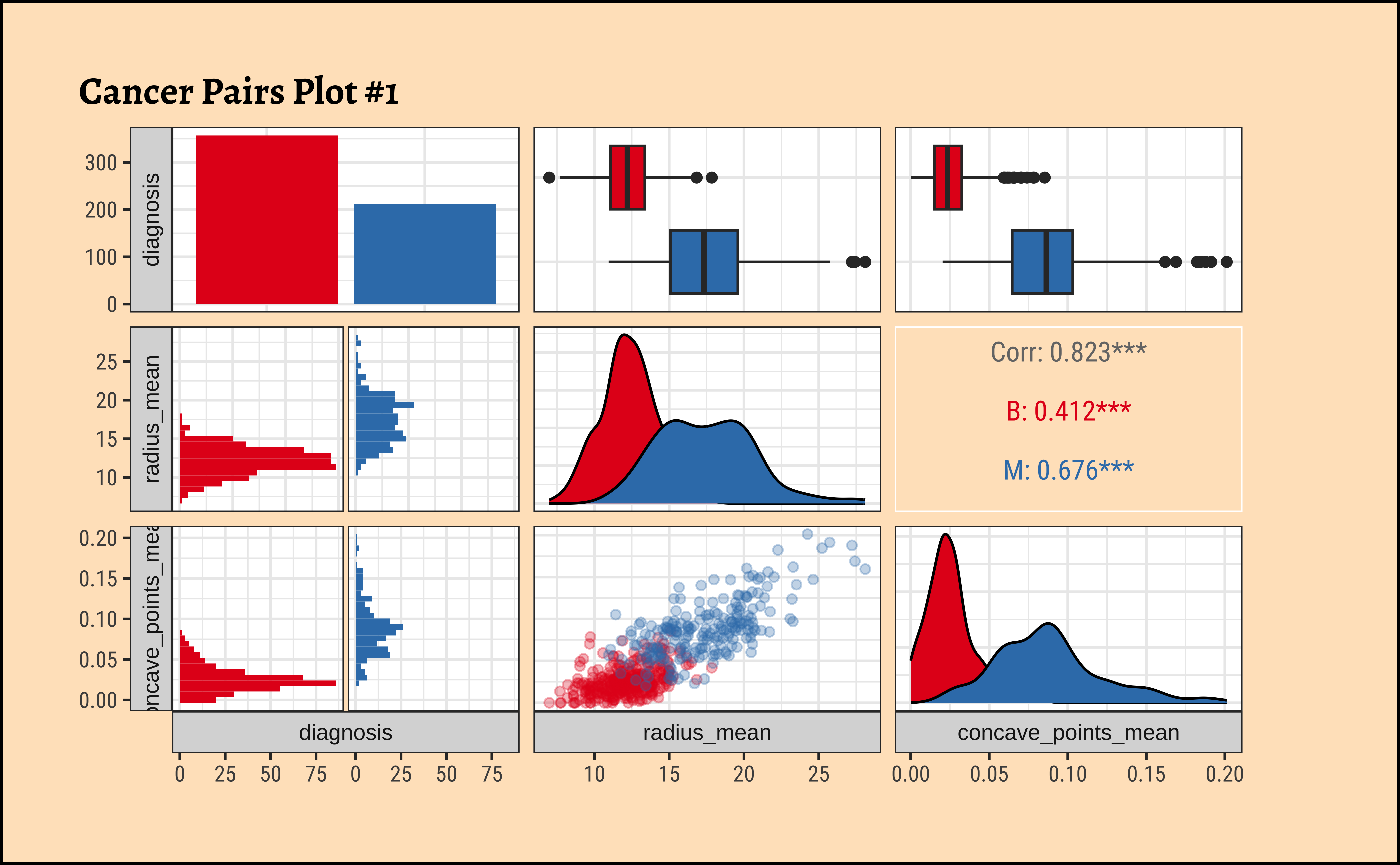

Figure 5: Pairs Plot for Cancer Data
NoteBusiness Insights from GGally::ggpairs
  • The counts for “B” and “M” are not terribly unbalanced; and both the radius_mean and concave_pts_mean appear to have well-separated box plot distributions for “B” and “M”.
  • Given the visible separation of the box-plots for both variables radius_mean and concave_pts_mean, we can believe that these will be good choices as predictors.
  • Interestingly, radius_mean and concave_pts_mean are also mutually well-correlated, with a \(\rho = 0.823\); we may wish (later) to choose (a pair of) predictor variables that are less strongly correlated.

5.3 Workflow: Model Building

Let us code two models, using one and then both the predictor variables:

Show the Code
cancer_fit_1 <- glm(diagnosis_malignant ~ radius_mean,
  data = cancer_modified,
  family = binomial(link = "logit")
)

cancer_fit_1 %>% broom::tidy()
Table 1: Simple Model

The equation for the simple model is:

\[ \begin{aligned} \operatorname{diagnosis\_malignant} &\sim Bernoulli\left(\operatorname{prob}_{\operatorname{diagnosis\_malignant} = \operatorname{1}}= \hat{P}\right) \\ \log\left[ \frac { \hat{P} }{ 1 - \hat{P} } \right] &= -15.25 + 1.03(\operatorname{radius\_mean}) \end{aligned} \tag{7}\]

Increasing radius_mean by one unit changes the log odds by \(\hat{\beta_1} = 1.033\) or equivalently it multiplies the odds by \(exp(\hat{\beta_1}) = 2.809\). We can plot the model as shown below:

Show the Code
ggplot2::theme_set(new = theme_custom())

qthresh <- c(0.2, 0.5, 0.8)
beta01 <- coef(cancer_fit_1)[1]
beta11 <- coef(cancer_fit_1)[2]
decision_point <- (log(qthresh / (1 - qthresh)) - beta01) / beta11
##
cancer_modified %>%
  gf_point(
    diagnosis_malignant ~ radius_mean,
    colour = ~diagnosis,
    title = "diagnosis ~ radius_mean",
    xlab = "Average radius",
    ylab = "Diagnosis (1=malignant)", size = 3, show.legend = F
  ) %>%
  # gf_fun(exp(1.033 * radius_mean - 15.25) / (1 + exp(1.033 * radius_mean - 15.25)) ~ radius_mean, xlim = c(1, 30), linewidth = 3, colour = "red") %>%
  gf_smooth(
    method = glm,
    method.args = list(family = "binomial"),
    se = FALSE,
    color = "black"
  ) %>%
  gf_vline(xintercept = decision_point, linetype = "dashed") %>%
  gf_refine(annotate(
    "text",
    label = paste0("q = ", qthresh),
    x = decision_point + 0.45,
    y = 0.4,
    angle = -90
  ), scale_color_brewer(palette = "Set1")) %>%
  gf_hline(yintercept = 0.5) %>%
  gf_theme(theme(plot.title.position = "plot")) %>%
  gf_refine(xlim(5, 30))

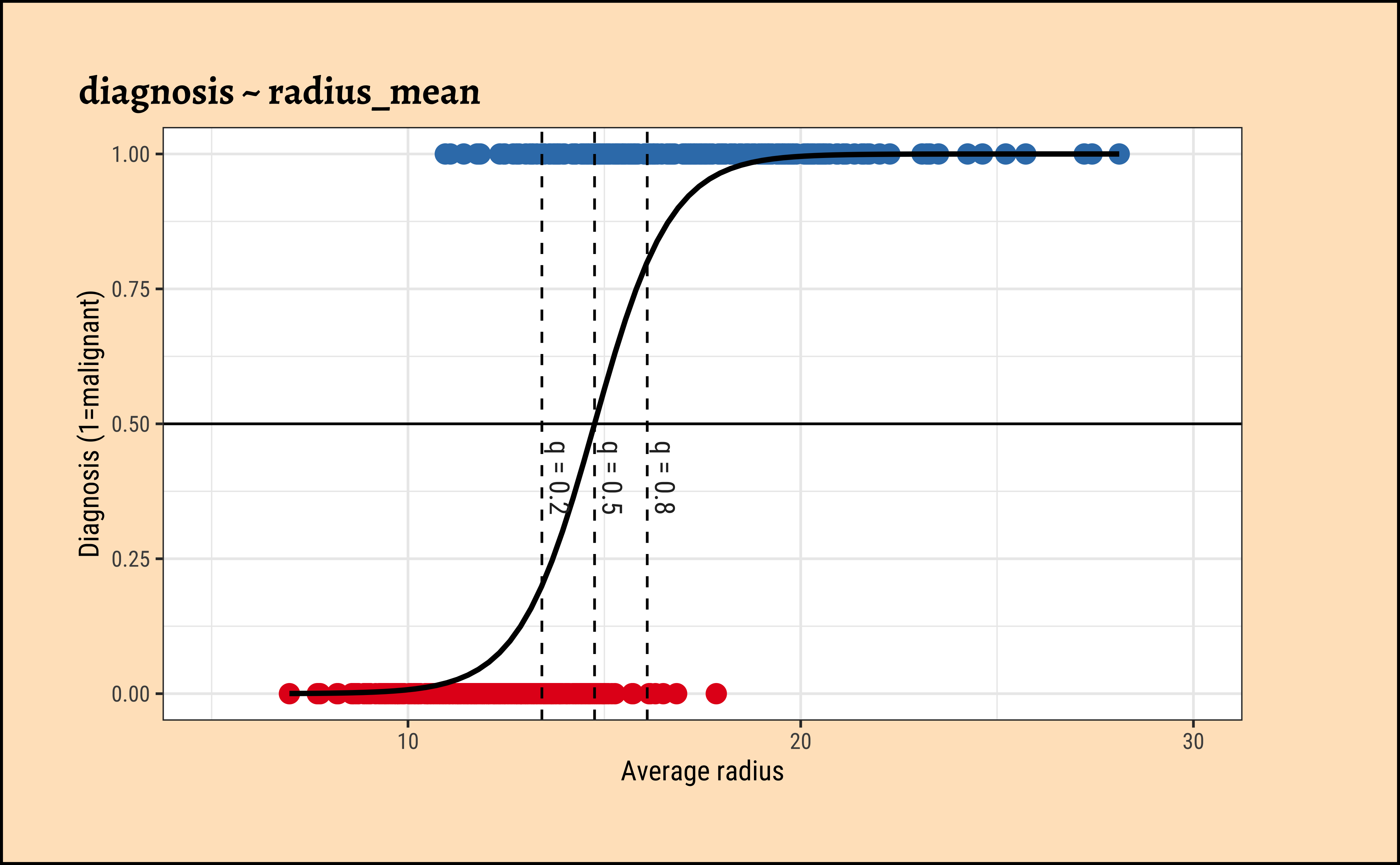

Figure 6: Simple Model plot

The dotted lines show how the model can be used to classify the data in to two classes (“B” and “M”) depending upon the threshold probability \(q\).

Taking both predictor variables, we obtain the model:

Show the Code
cancer_fit_2 <- glm(diagnosis_malignant ~ radius_mean + concave_points_mean,
  data = cancer_modified,
  family = binomial(link = "logit")
)

cancer_fit_2 %>% broom::tidy()
Table 2

The equation for the more complex model is:

\[ \begin{aligned} \operatorname{diagnosis\_malignant} &\sim Bernoulli\left(\operatorname{prob}_{\operatorname{diagnosis\_malignant} = \operatorname{1}}= \hat{P}\right) \\ \log\left[ \frac { \hat{P} }{ 1 - \hat{P} } \right] &= -13.7 + 0.64(\operatorname{radius\_mean}) + 84.22(\operatorname{concave\_points\_mean}) \end{aligned} \tag{8}\]

Increasing radius_mean by one unit changes the log odds by \(\hat{\beta_1} = 0.6389\) or equivalently it multiplies the odds by \(exp(\hat{\beta_1}) = 1.894\), provided concave_points_mean is held fixed.

We can plot the model as shown below: we create a scatter plot of the two predictor variables. The superimposed diagonal lines are lines for several constant values of threshold probability \(q\).

Show the Code
ggplot2::theme_set(new = theme_custom())

beta02 <- coef(cancer_fit_2)[1]
beta12 <- coef(cancer_fit_2)[2]
beta22 <- coef(cancer_fit_2)[3]
##
decision_intercept <- 1 / beta22 * (log(qthresh / (1 - qthresh)) - beta02)
decision_slope <- -beta12 / beta22
##
cancer_modified %>%
  gf_point(concave_points_mean ~ radius_mean,
    color = ~diagnosis, shape = ~diagnosis,
    size = 3, alpha = 0.5
  ) %>%
  gf_labs(
    x = "Average radius",
    y = "Average concave\nportions of the\ncontours",
    color = "Diagnosis",
    shape = "Diagnosis",
    title = "diagnosis ~ radius_mean + concave_points_mean"
  ) %>%
  gf_abline(
    slope = decision_slope, intercept = decision_intercept,
    linetype = "dashed"
  ) %>%
  gf_refine(
    scale_color_brewer(palette = "Set1"),
    annotate("text", label = paste0("q = ", qthresh), x = 10, y = c(0.08, 0.1, 0.115), angle = -17.155)
  ) %>%
  gf_theme(theme(plot.title.position = "plot"))

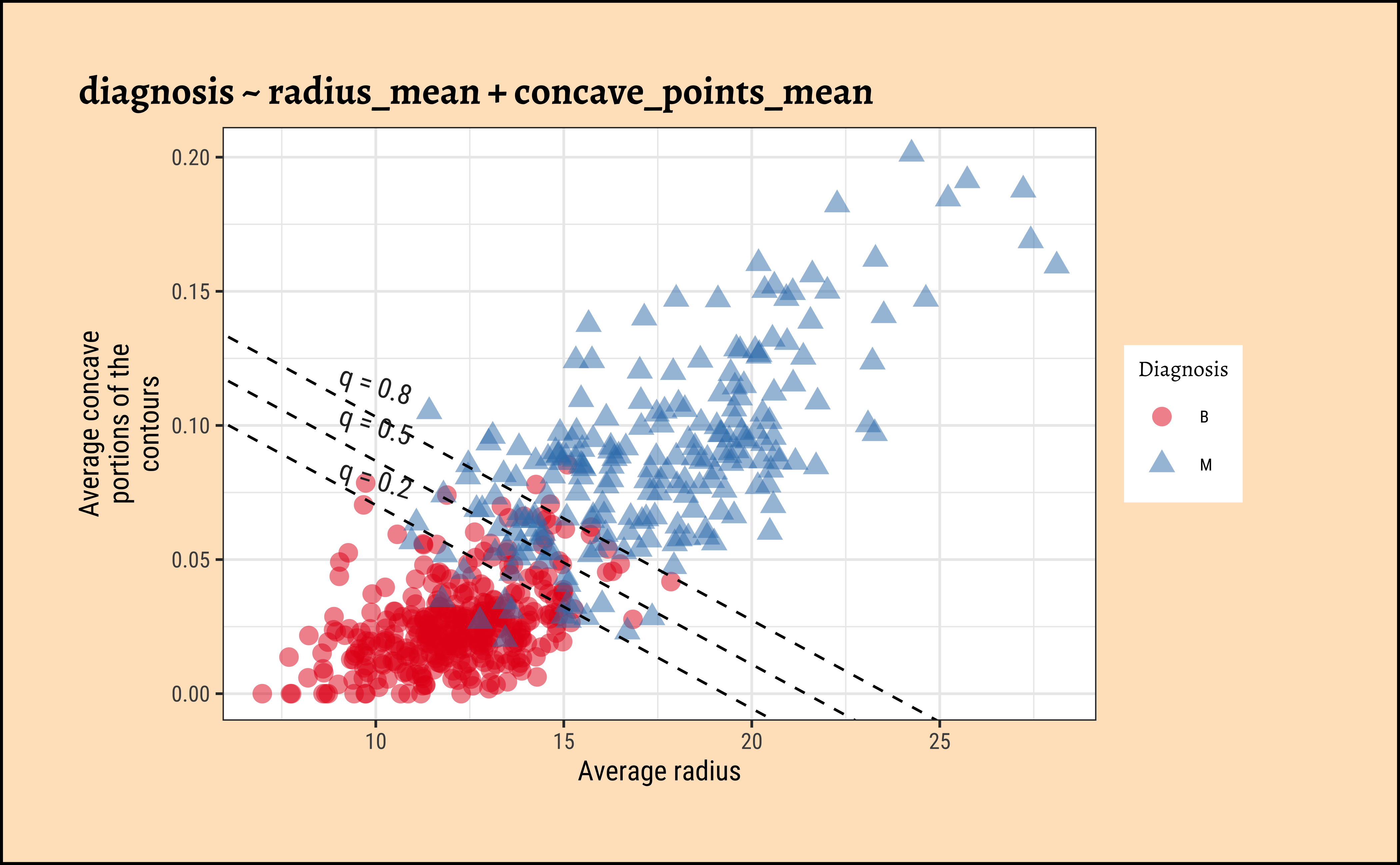

Figure 7: Complex Model plot

To Be Written Up. Yeah, sure.

To Be Written Up. Hmph.

To Be Written Up. (This is becoming a joke.)

6 Workflow: Logistic Regression Internals

All that is very well, but what is happening under the hood of the glm command? Consider the diagnosis (target) variable and say the average_radius feature/predictor variable. What we do is:

  1. Plot a scatter plot gf_point(diagnosis ~ average_radius, data = cancer_modified)
  2. Start with a sigmoid curve with some initial parameters \(\hat{\beta_1}\) and \(\hat{\beta_0}\) that gives us some prediction of the probability of diagnosis for any given average_radius
  3. We know the target labels for each data point ( i.e. “B” and “M”). We can calculate the likelihood of \(\hat{\beta_1}\) and \(\hat{\beta_0}\), given the data.
  4. We then change the values of \(\hat{\beta_1}\) and\(\hat{\beta_0}\) and calculate the likelihood again.
  5. The set of parameters with the maximum likelihood(ML) for \(\hat{\beta_1}\) and \(\hat{\beta_0}\) gives us our logistic regression model.
  6. Use that model henceforth as a model for prediction.

How does one find out the “ML” parameters? There is clearly a two step procedure:

  • Find the likelihood of the data for the parameters \(\beta_1\)
  • Maximize the likelihood by varying them. In practice, the changes to the parameters (step 5) are made in accordance with a method such as the Newton-Raphson method that can rapidly find the ML values for the parameters.

6.1 Likelihood Function

Let us visualize the variations and computations from step(5). For the sake of clarity:

  • we will take a small sample of the original dataset
  • we take several different values for \(\beta_0\) and \(\beta_1\)
  • Use these get a set of regression curves
  • which we superimpose on the scatter plot of the sample

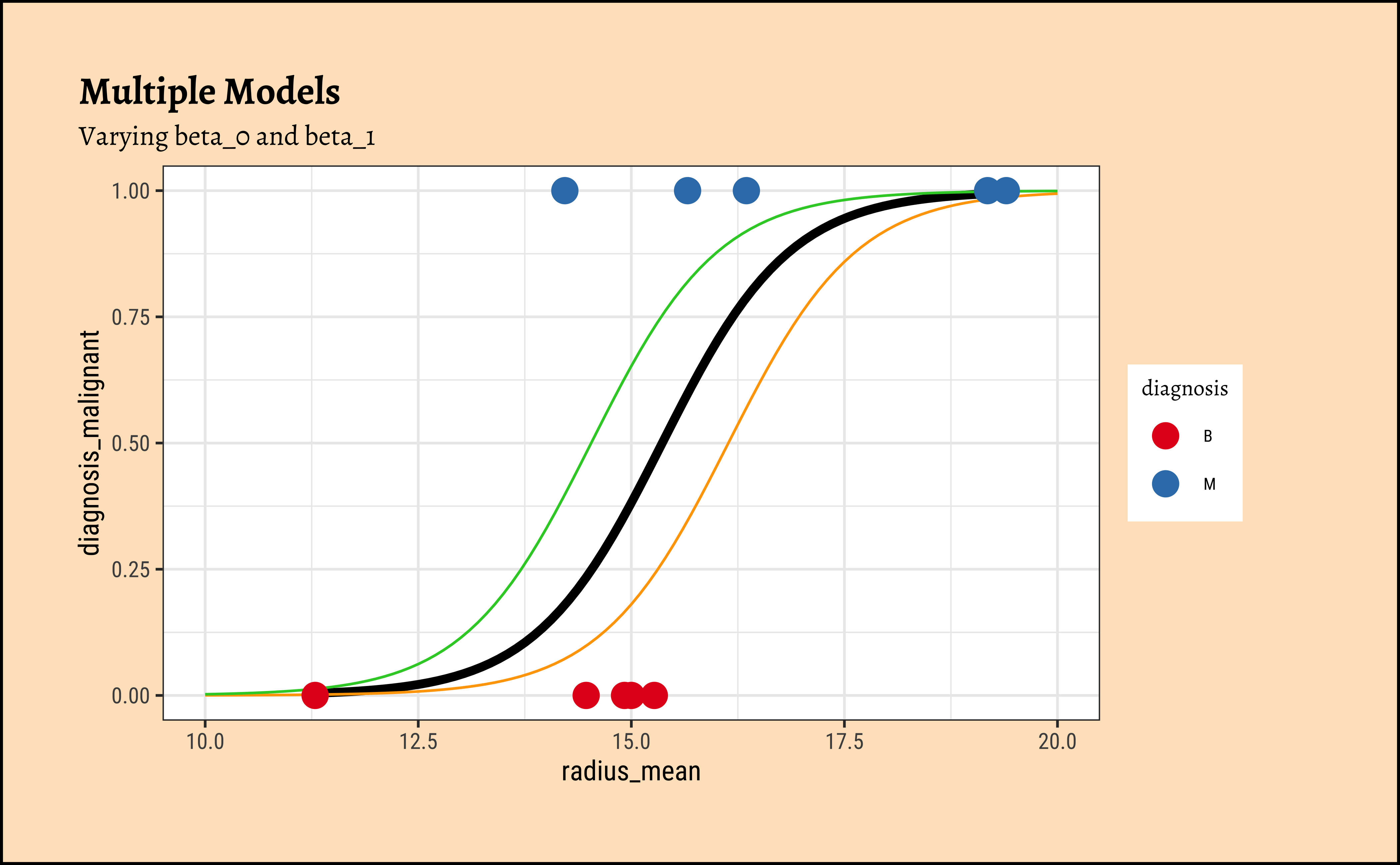

Figure 8: Multiple Models

In Figure 8, we see three models: the “optimum” one in black, and two others in green and orange respectively.

We now project the actual points on to the regression curve, to obtain the predicted probability for each point.

Show the Code
ggplot2::theme_set(new = theme_custom())

plot_dat <- cancer_modified_sample %>%
  mutate(
    curve1 = ilogit(radius_mean * (beta1_sample - 0.002) + beta0_sample - 1),
    curve2 = ilogit(radius_mean * (beta1_sample + 0.0075) + beta0_sample + 1)
  )
# plot_dat
## Now plot the two steps for each regression curve
## 1. Point projection
plot_dat %>%
  gf_point(diagnosis_malignant ~ radius_mean,
    colour = ~diagnosis, size = 4, title = "Data Point Projection"
  ) %>%
  gf_smooth(
    method = glm,
    method.args = list(family = "binomial"),
    se = FALSE,
    color = "grey"
  ) %>%
  gf_refine(scale_color_brewer(palette = "Set1")) %>%
  ## Overlaid regression curves
  gf_fun(ilogit(x * (beta1_sample - 0.002) + beta0_sample - 1) ~ x, xlim = c(10, 20), color = "orange", linewidth = 2) %>%
  gf_point(curve1 ~ radius_mean, size = 4) %>%
  gf_segment(curve1 + diagnosis_malignant ~ radius_mean + radius_mean, arrow = arrow(ends = "first", angle = 15, type = "closed", length = unit(0.125, "inches")))

# %>%
# gf_segment(curve1 + curve1 ~ radius_mean + 0)

## 2. probability lookup
plot_dat %>%
  gf_point(diagnosis_malignant ~ radius_mean,
    colour = ~diagnosis, size = 4, alpha = 0.3,
    title = "Predicted Probability Lookup"
  ) %>%
  gf_smooth(
    method = glm,
    method.args = list(family = "binomial"),
    se = FALSE,
    color = "grey"
  ) %>%
  gf_refine(scale_color_brewer(palette = "Set1")) %>%
  gf_fun(ilogit(x * (beta1_sample - 0.002) + beta0_sample - 1) ~ x,
    xlim = c(10, 20), color = "orange", linewidth = 2
  ) %>%
  gf_point(curve1 ~ radius_mean, size = 4) %>%
  # gf_segment(curve1 + diagnosis_malignant ~ radius_mean + radius_mean) %>%
  gf_segment(curve1 + curve1 ~ radius_mean + 10,
    arrow = arrow(
      ends = "last", angle = 15,
      length = unit(0.1, "inches")
    )
  )



### Curve 2
## Now plot the two steps for each regression curve
## 1. Point projection
plot_dat %>%
  gf_point(diagnosis_malignant ~ radius_mean,
    colour = ~diagnosis, size = 4, title = "Data Point Projection"
  ) %>%
  gf_smooth(
    method = glm,
    method.args = list(family = "binomial"),
    se = FALSE,
    color = "grey"
  ) %>%
  gf_refine(scale_color_brewer(palette = "Set1")) %>%
  ## Overlaid regression curves
  gf_fun(ilogit(x * (beta1_sample + 0.0075) + beta0_sample + 1) ~ x, xlim = c(10, 20), color = "limegreen", linewidth = 2) %>%
  gf_point(curve2 ~ radius_mean, size = 4) %>%
  gf_segment(curve2 + diagnosis_malignant ~ radius_mean + radius_mean) %>%
  gf_segment(curve2 + diagnosis_malignant ~ radius_mean + radius_mean, arrow = arrow(ends = "first", angle = 15, type = "closed", length = unit(0.125, "inches")))

## 2. probability lookup
plot_dat %>%
  gf_point(diagnosis_malignant ~ radius_mean,
    colour = ~diagnosis, size = 4, alpha = 0.3,
    title = "Predicted Probability Lookup"
  ) %>%
  gf_refine(scale_color_brewer(palette = "Set1")) %>%
  gf_smooth(
    method = glm,
    method.args = list(family = "binomial"),
    se = FALSE,
    color = "grey"
  ) %>%
  gf_fun(ilogit(x * (beta1_sample + 0.0075) + beta0_sample + 1) ~ x, xlim = c(10, 20), color = "limegreen", linewidth = 2) %>%
  gf_point(curve2 ~ radius_mean, size = 4) %>%
  # gf_segment(curve2 + diagnosis_malignant ~ radius_mean + radius_mean) %>%
  gf_segment(curve2 + curve2 ~ radius_mean + 10, arrow = arrow(ends = "last", angle = 15, length = unit(0.1, "inches")))

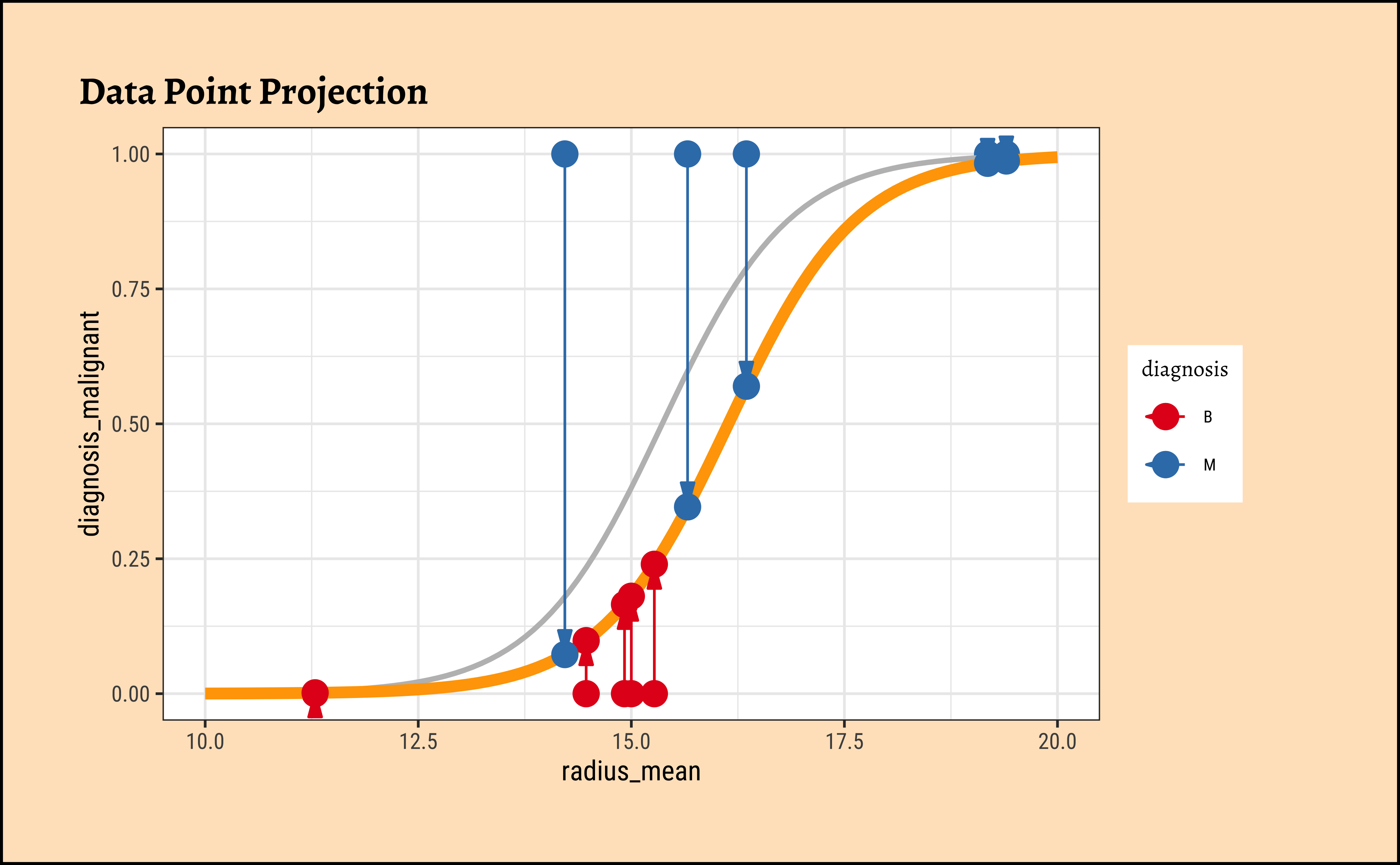

(a) Point Projection Model #1

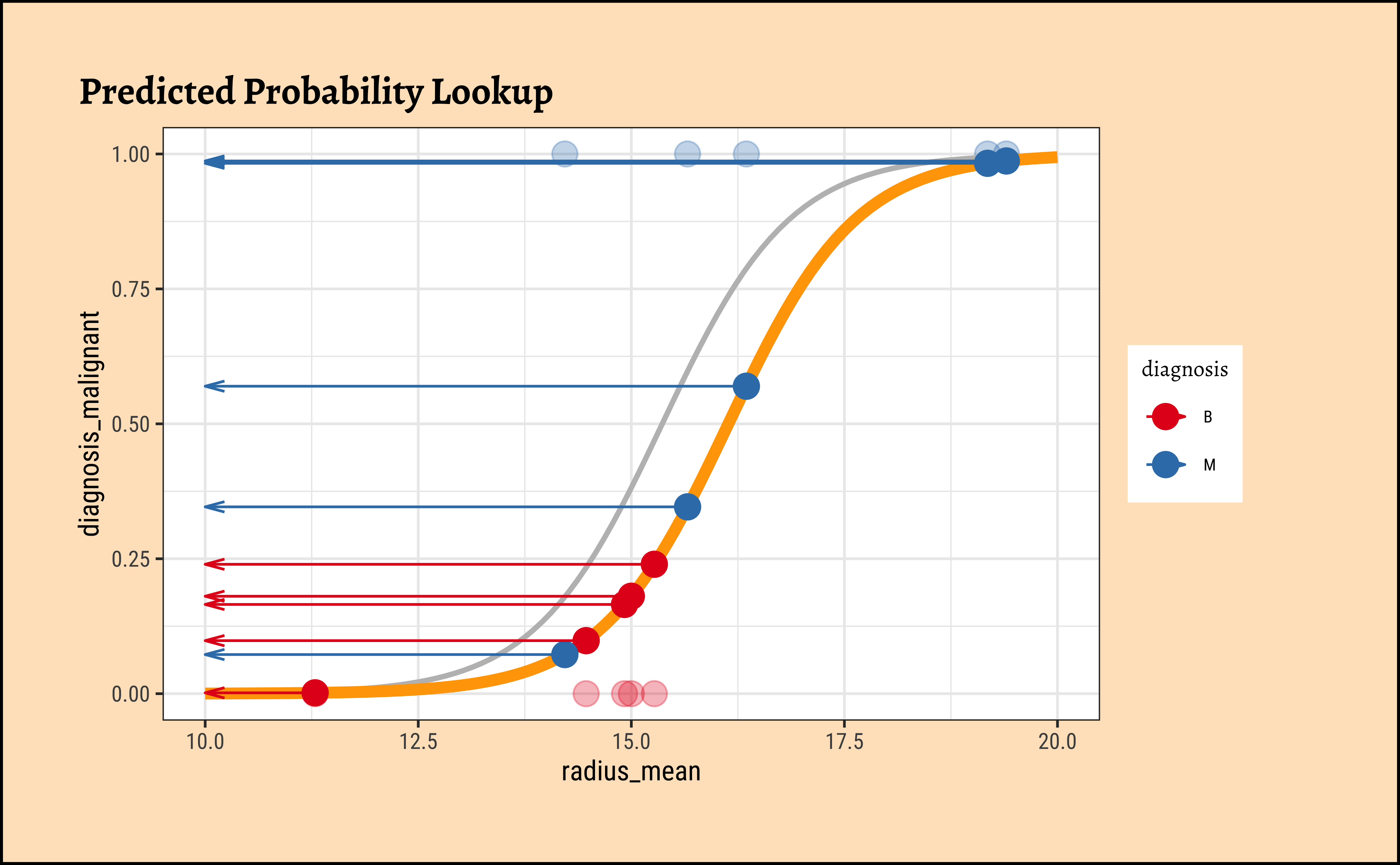

(b) Probability Lookup Model #1

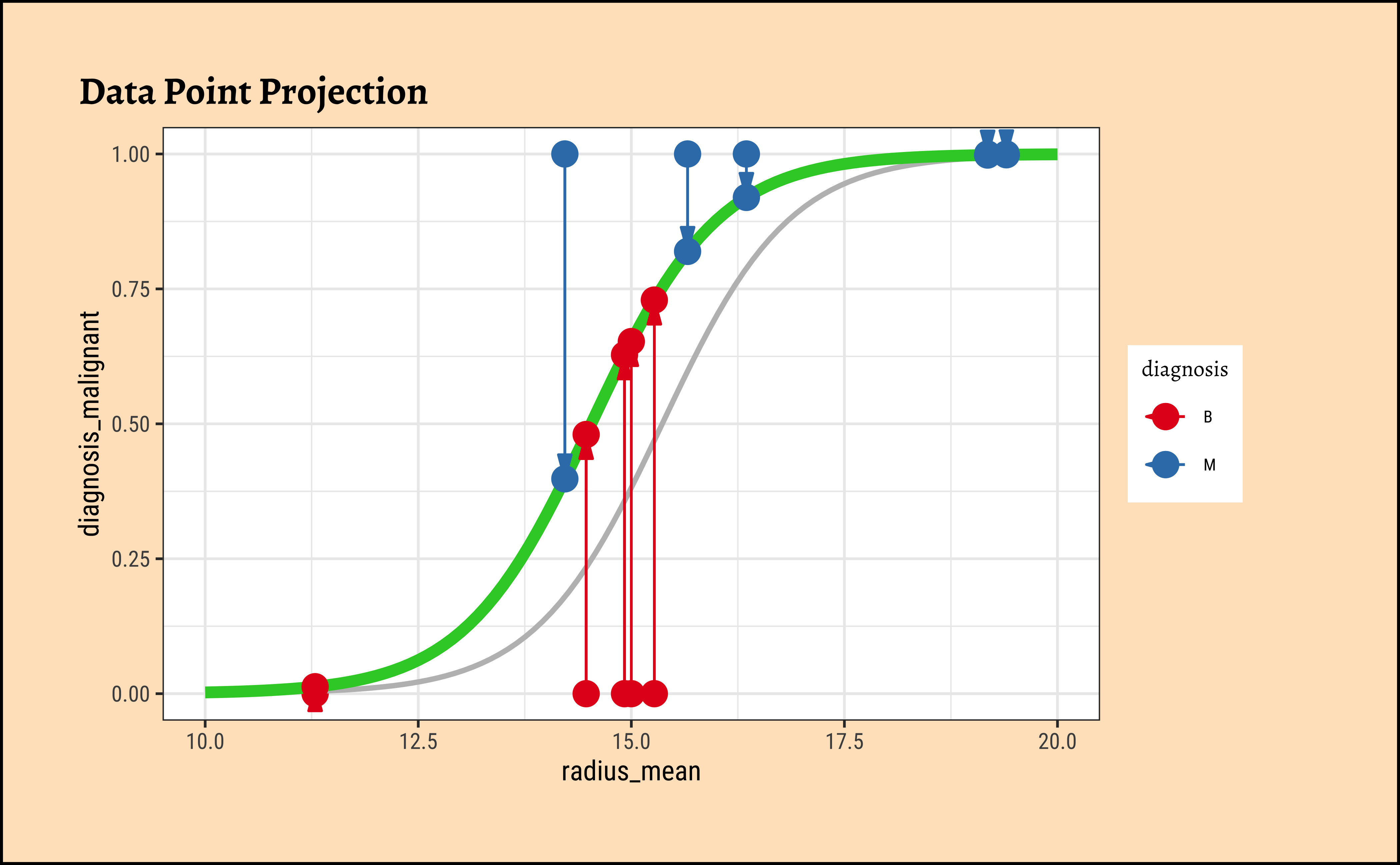

(c) Point Projection Model #2

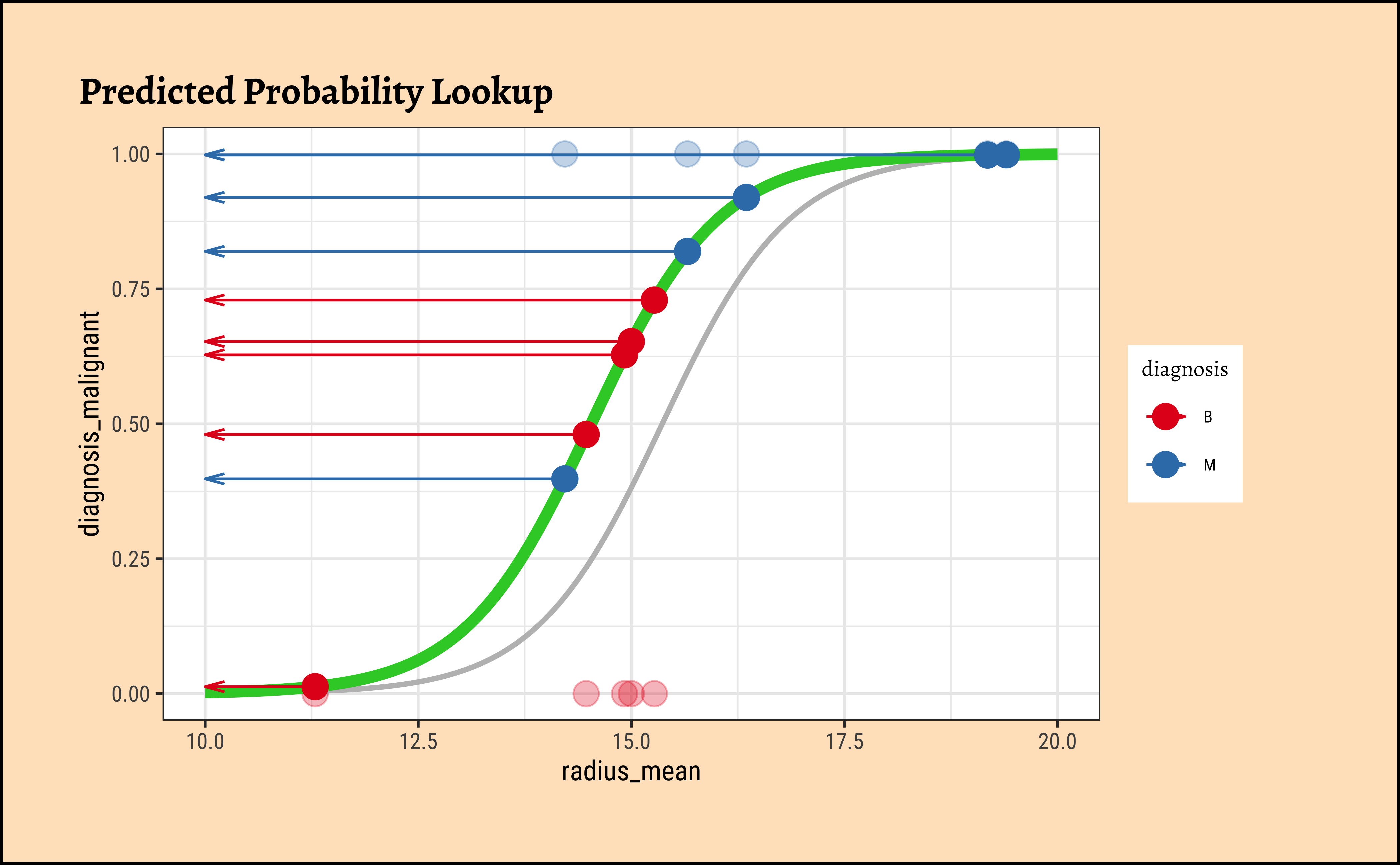

(d) Probability Lookup Model #2
Figure 9: Point Projection and Probability Lookup

The predicted probability \(p_i\) for each datum(radius_mean) is for the tumour being Malignant. If the datum corresponds to a tumour that is Benign, we must take \(1-p_i\). Each datum point is assumed to be independent, so we can calculate the likelihood as a product of probabilities, as follows: In this way, we calculate the likelihood of the data, give the model parameters as:

\[ \large{ \begin{equation} \begin{aligned} likelihood &= \prod_{Malignant}^{}p_i ~ \times ~ \prod_{Benign}^{}(1 - p_i)\\ &= \prod_{}^{}p_i^{y_{Malignant = 1}} ~ \times ~ (1-p_i)^{y_{Benign = 1}}\\ &= \prod_{}^{}(p_i)^{y_i} ~\times~ (1-p_i)^{1-y_i}// ~since~labels~y_i~are~binary~1~or~0// \end{aligned} \end{equation} } \]

Lastly, since this is a product of small numbers, it can lead to inaccuracies, so we take the log of the whole thing to make it into an addition, obtaining the log-likelihood (LL):

\[ \large{ \begin{equation} \begin{aligned} log~likelihood ~~ ll(\beta_i) &= log\prod_{}^{}(p_i)^{y_i} * (1-p_i)^{1-y_i}\\ &= \sum_{}^{} y_i * log (p_i) + (1-y_i) * log(1 - p_i)\\ \end{aligned} \end{equation} } \tag{9}\]

6.2 Maximum Likelihood Estimation

We now need to find the (global) maximum of this quantity and determine the \(\beta_i\). Flipping this problem around, we find the maximum likelihood by minimizing the slope/gradient of of the LL!! And, to minimize the slope of the LL, we use the Newton-Raphson method or equivalent. Phew!

NoteThe Newton-Raphson Method

  • The black curve \(y = fx)\) is the function to be minimized, i.e. it is the gradient of the LL function.
  • We start with any arbitrary starting value of \(x = x1, y1 = f(x1)\) and calculate the tangent/slope/gradient equation \(f'(x1)\) at point \((x1, y1) = (x1, f(x1))\).
  • The tangent \(f'(x1)\) cuts the \(x-axis\) at \(x2\).(Grey line).
  • Repeat.
  • Stop when the gradient becomes very small and \(x_i\) changes very in successive iterations.

How do we calculate the next value of x using the tangent?

  • At \((x1,y1)\), the tangent equation is: \(y = y1 - slope1 * (x - x1)\).
  • This equation applies at point \((x2,0\)), so \(0 = y1 - slope1 *(x2 - x1)\). (NOTE: Imagine that this is obtained by temporarily moving the y-axis to \(x = x1\) (dotted line), so \(y1\) in effect is the “c” in \(y = mx + c\))
  • Solving for \(x2\), we get: \(x2 = y1/slope1 - x1 = f(x1)/f'(x1)\)
  • Since \(f(x)\) is already the gradient of LL, we have: \(x2 = x1 - ll'(x1)/ll''(x1)\) !!

7 To be written up

  • Formula for gradient of LL
  • Convergence of Newton- Raphson method for Maximum Likelihood
  • Hand Calculation of all steps (!!)
  • Bah.

8 Conclusions

  • Logistic Regression is a great ML algorithm for predicting Qualitative target variables.
  • It also works for multi-level/multi-valued Qual variables (multinomial logistic regression)
  • The internals of Logistic Regression are quite different compared to Linear Regression

9 References

  1. Judd, Charles M. & McClelland, Gary H. & Ryan, Carey S. Data Analysis: A Model Comparison Approach to Regression, ANOVA, and Beyond. Routledge, Aug 2017. Chapter 14.
  2. Emi Tanaka.Logistic Regression https://emitanaka.org/iml/lectures/lecture-04A.html#/TOC. Course: ETC3250/5250, Monash University, Melbourne, Australia.
  3. Geeks for Geeks.Logistic Regression. https://www.geeksforgeeks.org/understanding-logistic-regression/
  4. Geeks for Geeks.Maximum Likelihood Estimation. https://www.geeksforgeeks.org/probability-density-estimation-maximum-likelihood-estimation/
  5. https://yury-zablotski.netlify.app/post/how-logistic-regression-works/
  6. https://uc-r.github.io/logistic_regression
  7. https://francisbach.com/self-concordant-analysis-for-logistic-regression/
  8. https://statmath.wu.ac.at/courses/heather_turner/glmCourse_001.pdf
  9. https://jasp-stats.org/2022/06/30/generalized-linear-models-glm-in-jasp/
  10. P. Bingham, N.Q. Verlander, M.J. Cheal (2004). John Snow, William Farr and the 1849 outbreak of cholera that affected London: a reworking of the data highlights the importance of the water supply. Public Health Volume 118, Issue 6, September 2004, Pages 387-394. Read the PDF.
  11. https://peopleanalytics-regression-book.org/bin-log-reg.html
  12. McGill University. Epidemiology https://www.medicine.mcgill.ca/epidemiology/joseph/courses/epib-621/logfit.pdf
  13. https://arunaddagatla.medium.com/maximum-likelihood-estimation-in-logistic-regression-f86ff1627b67
  14. Paul Roback & Julie Legler. (January 26, 2021). Beyond Multiple Linear Regression: Applied Generalized Linear Models and Multilevel Models in R https://bookdown.org/roback/bookdown-BeyondMLR/
R Package Citations
Package Version Citation
equatiomatic 0.4.4 Anderson, Heiss, and Sumners (2025)
ISLR 1.4 James et al. (2021)
Anderson, Daniel, Andrew Heiss, and Jay Sumners. 2025. equatiomatic: Transform Models into “LaTeX” Equations. https://doi.org/10.32614/CRAN.package.equatiomatic.
James, Gareth, Daniela Witten, Trevor Hastie, and Rob Tibshirani. 2021. ISLR: Data for an Introduction to Statistical Learning with Applications in r. https://doi.org/10.32614/CRAN.package.ISLR.
Back to top

Footnotes

  1. https://statmath.wu.ac.at/courses/heather_turner/glmCourse_001.pdf↩︎

  2. https://en.wikipedia.org/wiki/Taylor%27s_law↩︎

Citation

BibTeX citation:
@online{v.2023,
  author = {V., Arvind},
  title = {Modelling with {Logistic} {Regression}},
  date = {2023-04-13},
  url = {https://madhatterguide.netlify.app/content/courses/Analytics/30-Modelling/Modules/30-LogReg/},
  langid = {en},
  abstract = {Predicting Qualitative Target Variables}
}
For attribution, please cite this work as:
V., Arvind. 2023. “Modelling with Logistic Regression.” April 13, 2023. https://madhatterguide.netlify.app/content/courses/Analytics/30-Modelling/Modules/30-LogReg/.
